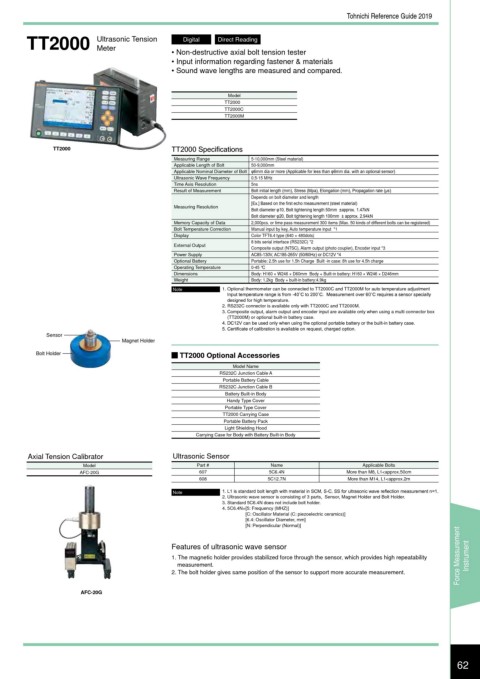

Tohnichi Reference Guide 2019

TT2000 Ultrasonic Tension Digital Direct Reading
Meter
? Non-destructive axial bolt tension tester
? Input information regarding fastener & materials
? Sound wave lengths are measured and compared.

Model
TT2000
TT2000C
TT2000M

TT2000 TT2000 Speci?cations
Measuring Range 5-10,000mm (Steel material)
Applicable Length of Bolt 50-9,000mm
Applicable Nominal Diameter of Bolt ?6mm dia or more (Applicable for less than ?6mm dia. with an optional sensor)
Ultrasonic Wave Frequency 0.5-15 MHz
Time Axis Resolution 5ns
Result of Measurement Bolt initial length (mm), Stress (Mpa), Elongation (mm), Propagation rate (?s)
Depends on bolt diameter and length
[Ex.] Based on the ?rst echo measurement (steel material)
Measuring Resolution
Bolt diameter ?10, Bolt tightening length 50mm ±approx. 1.47kN
Bolt diameter ?20, Bolt tightening length 100mm ± approx. 2.94kN
Memory Capacity of Data 2,000pcs. or time pass measurement 300 items (Max. 50 kinds of different bolts can be registered)
Bolt Temperature Correction Manual input by key, Auto temperature input *1
Display Color TFT6.4 type (640 × 480dots)
8 bits serial interface (RS232C) *2
External Output
Composite output (NTSC), Alarm output (photo coupler), Encoder input *3
Power Supply AC85-130V, AC185-265V (50/60Hz) or DC12V *4
Optional Battery Portable: 2.5h use for 1.5h Charge Built -in case: 8h use for 4.5h charge
Operating Temperature 0-45 °C
Dimensions Body: H160 × W246 × D60mm Body + Built-in battery: H160 × W246 × D246mm
Weight Body: 1.2kg Body + built-in battery:4.9kg
Note 1. Optional thermometer can be connected to TT2000C and TT2000M for auto temperature adjustment
Input temperature range is from -40?C to 200?C. Measurement over 60?C requires a sensor specially
designed for high temperature.
2. RS232C connector is available only with TT2000C and TT2000M.
3. Composite output, alarm output and encoder input are available only when using a multi connector box
(TT2000M) or optional built-in battery case.
4. DC12V can be used only when using the optional portable battery or the built-in battery case.
5. Certi?cate of calibration is available on request, charged option.
Sensor
Magnet Holder
Bolt Holder TT2000 Optional Accessories
Model Name
RS232C Junction Cable A
Portable Battery Cable
RS232C Junction Cable B
Battery Built-in Body
Handy Type Cover
Portable Type Cover
TT2000 Carrying Case
Portable Battery Pack
Light Shielding Hood
Carrying Case for Body with Battery Built-in Body

Axial Tension Calibrator Ultrasonic Sensor
Model Part # Name Applicable Bolts
AFC-20G 607 5C6.4N More than M8, L1<approx.50cm
608 5C12.7N More than M14, L1<approx.2m
Note 1. L1 is standard bolt length with material in SCM, S-C, SS for ultrasonic wave reflection measurement n=1.
2. Ultrasonic wave sensor is consisting of 3 parts, Sensor, Magnet Holder and Bolt Holder.
3. Standard 5C6.4N does not include bolt holder.
4. 5C6.4N=[5: Frequency (MHZ)]
[C: Oscillator Material (C: piezoelectric ceramics)]
[6.4: Oscillator Diameter, mm]
[N: Perpendicular (Normal)]
Force Measurement
Features of ultrasonic wave sensor
1. The magnetic holder provides stabilized force through the sensor, which provides high repeatability Instrument
measurement.
2. The bolt holder gives same position of the sensor to support more accurate measurement.

AFC-20G

62
