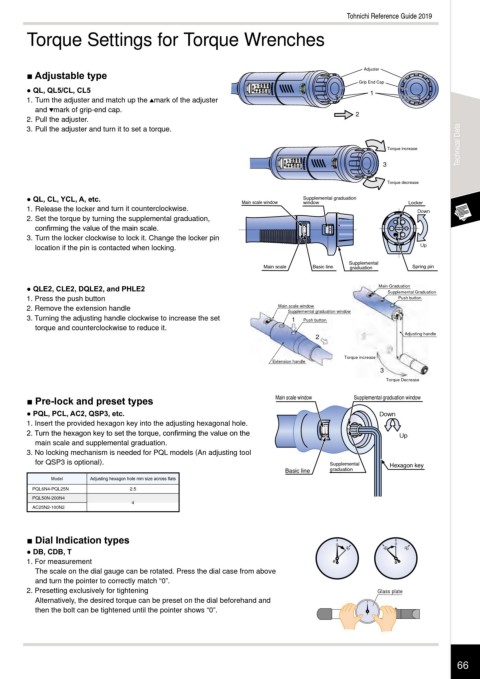

Torque Settings for Torque Wrenches

? Adjustable type Adjuster
Grip End Cap
? QL, QL5/CL, CL5 1
1. Turn the adjuster and match up the mark of the adjuster
and mark of grip-end cap.
2. Pull the adjuster. 2
Technical Data
3. Pull the adjuster and turn it to set a torque.

Torque increase
3

Torque decrease
? QL, CL, YCL, A, etc. 0DLQ VFDOH ZLQGRZ 6XSSOHPHQWDO JUDGXDWLRQ /RFNHU
ZLQGRZ
1. Release the locker and turn it counterclockwise. %PXO
2. Set the torque by turning the supplemental graduation,
con?rming the value of the main scale. / ?N -0$,
3. Turn the locker clockwise to lock it. Change the locker pin
location if the pin is contacted when locking. 6Q
6XSSOHPHQWDO
0DLQ VFDOH %DVLF OLQH JUDGXDWLRQ 6SULQJ SLQ

? QLE2, CLE2, DQLE2, and PHLE2 Main Graduation
Supplemental Graduation
1. Press the push button Push button
2. Remove the extension handle Main scale window
Supplemental graduation window
3. Turning the adjusting handle clockwise to increase the set 1 Push button
torque and counterclockwise to reduce it.
Adjusting handle
2
Torque increase
Extension handle
3
Torque Decrease
? Pre-lock and preset types 0DLQ VFDOH ZLQGRZ 6XSSOHPHQWDO JUDGXDWLRQ ZLQGRZ
? PQL, PCL, AC2, QSP3, etc. %PXO
1. Insert the provided hexagon key into the adjusting hexagonal hole. /?N
2. Turn the hexagon key to set the torque, con?rming the value on the 6Q
main scale and supplemental graduation.
3. No locking mechanism is needed for PQL models (An adjusting tool
for QSP3 is optional). 6XSSOHPHQWDO +H[DJRQ NH\
%DVLF OLQH JUDGXDWLRQ
Model Adjusting hexagon hole mm size across flats
PQL6N4-PQL25N 2.5
PQL50N-200N4
4
AC25N2-100N2

? Dial Indication types

? DB, CDB, T
1. For measurement
The scale on the dial gauge can be rotated. Press the dial case from above
and turn the pointer to correctly match ?0?.
2. Presetting exclusively for tightening Glass plate
Alternatively, the desired torque can be preset on the dial beforehand and
then the bolt can be tightened until the pointer shows ?0?.

66
