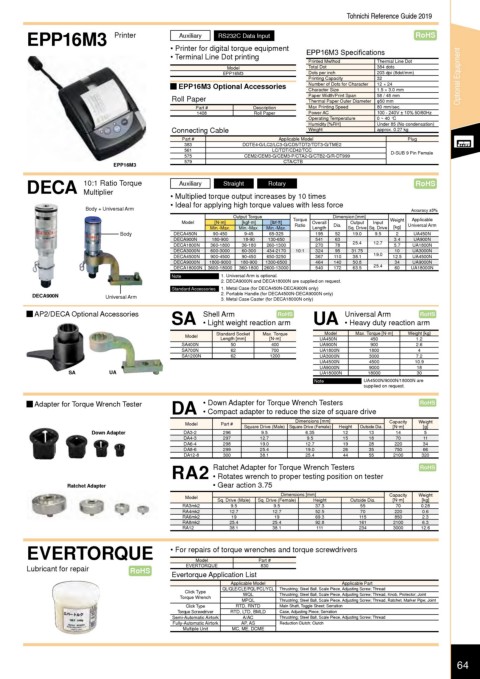

Tohnichi Reference Guide 2019
EPP16M3 Printer Auxiliary RS232C Data Input RoHS

? Printer for digital torque equipment EPP16M3 Speci?cations
? Terminal Line Dot printing
Printed Mwthod Thermal Line Dot
Model Total Dot 384 dots
EPP16M3 Dots per inch 203 dpi (8dot/mm)
Printing Capacity 32 Optional Equipment
EPP16M3 Optional Accessories Number of Dots for Character 12 × 24
1.5 × 3.0 mm
Character Size
Roll Paper Paper Width/Print Span 58 / 48 mm
Thermal Paper Outer Diameter
?50 mm
Part # Description Max Printing Speed 80 mm/sec.
1408 Roll Paper Power AC 100 - 240V ± 10% 50/60Hz
Operating Temperature 0 ~ 40 °C
Humidity [%RH] Under 85 (No condensation)
Connecting Cable Weight approx. 0.27 kg
Part # Applicable Model Plug
383 DOTE4-G/LC2/LC3-G/CD5/TDT2/TDT3-G/TME2
561 LC/TDT/CD42/TCC D-SUB 9 Pin Female
575 CEM2/CEM3-G/CEM3-P/CTA2-G/CTB2-G/R-DT999
579 CTA/CTB
EPP16M3
DECA 10:1 Ratio Torque Auxiliary Straight Rotary RoHS
Multiplier
? Multiplied torque output increases by 10 times
? Ideal for applying high torque values with less force
Body + Universal Arm Accuracy ±5%
Output Torque Dimension [mm]
Applicable
Model [N·m] [kgf·m] [lbf·ft] Torque Overall Dia. Output Input Weight Universal Arm
Ratio
Min.-Max. Min.-Max. Min.-Max. Length Sq. Drive Sq. Drive [kg]
Body DECA450N 90-450 9-45 65-325 195 52 19.0 9.5 2 UA450N
DECA900N 180-900 18-90 130-650 541 63 3.4 UA900N
DECA1800N 360-1800 36-180 260-1300 270 78 25.4 12.7 5.7 UA1800N
DECA3000N 600-3000 60-300 434-2170 10:1 324 95 31.75 10 UA3000N
DECA4500N 900-4500 90-450 650-3250 367 110 38.1 19.0 12.5 UA4500N
DECA9000N 1800-9000 180-900 1300-6500 464 140 50.8 34 UA9000N
DECA18000N 3600-18000 360-1800 2600-13000 540 172 63.5 25.4 60 UA18000N
Note 1. Universal Arm is optional.
2. DECA9000N and DECA18000N are supplied on request.
Standard Accessories 1. Metal Case (for DECA450N-DECA900N only)
DECA900N Universal Arm 2. Portable Handle (for DECA4500N-DECA9000N only)
3. Metal Case Caster (for DECA18000N only)
SA ? Light weight reaction arm UA ? Heavy duty reaction arm
AP2/DECA Optional Accessories Shell Arm RoHS Universal Arm RoHS
Model
Model Standard Socket Max. Torque UA450N Max. Torque [N·m] Weight [kg]
[N·m]
1.2
450
Length [mm]
SA400N 50 400 UA900N 900 2.6
SA700N 62 700 UA1800N 1800 4
SA1200N 62 1200 UA3000N 3000 7.2
UA4500N 4500 10.9
UA9000N 9000 18
SA UA UA18000N 18000 30
Note UA4500N/9000N/18000N are
supplied on request.
DA ? Compact adapter to reduce the size of square drive
Adapter for Torque Wrench Tester ? Down Adapter for Torque Wrench Testers RoHS
Dimensions [mm] Capacity Weight
Model Part # Square Drive (Male) Square Drive (Female) Height Outside Dia. [N·m] [g]
Down Adapter DA3-2 296 9.5 6.35 12 13 14 5
DA4-3 297 12.7 9.5 15 18 70 11
DA6-4 298 19.0 12.7 19 28 220 34
DA8-6 299 25.4 19.0 26 35 750 66
DA12-8 300 38.1 25.4 44 55 2100 320
RA2 Ratchet Adapter for Torque Wrench Testers RoHS
? Rotates wrench to proper testing position on tester
Ratchet Adapter ? Gear action 3.75
Dimensions [mm] Capacity Weight
Model
Sq. Drive (Male) Sq. Drive (Female) Height Outside Dia. [N·m] [kg]
RA3mk2 9.5 9.5 37.3 55 70 0.28
RA4mk2 12.7 12.7 52.5 70 220 0.6
RA6mk2 19 19 69.3 115 850 2.3
RA8mk2 25.4 25.4 92.8 161 2100 6.3
RA12 38.1 38.1 111 234 3000 12.6
EVERTORQUE ? For repairs of torque wrenches and torque screwdrivers
Model
830
Lubricant for repair RoHS EVERTORQUE Part #
Evertorque Application List
Applicable Model Applicable Part
QL/QLE/CLE/PQL/PCL/YCL Thrustring; Steel Ball, Scale Piece, Adjusting Screw; Thread
Click Type Thrustring; Steel Ball, Scale Piece, Adjusting Screw; Thread, Knob, Protector; Joint
Torque Wrench WQL
MPQL Thrustring; Steel Ball, Scale Piece, Adjusting Screw; Thread, Ratchet, Marker Pipe; Joint
Click Type RTD, RNTD Main Shaft, Toggle Sheet; Serration
Torque Screwdriver RTD, LTD, BMLD Case, Adjusting Piece; Serration
Semi-Automatic Airtork A/AC Thrustring; Steel Ball, Scale Piece, Adjusting Screw; Thread
Fully-Automatic Airtork AP, AS Reduction Clutch; Clutch
Multiple Unit MC, ME, DCME
