Tohnichi Reference Guide 2019

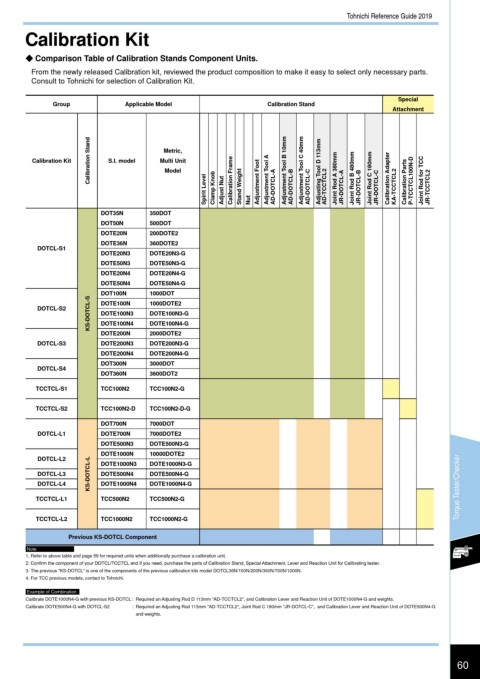

Calibration Kit

Comparison Table of Calibration Stands Component Units.
From the newly released Calibration kit, reviewed the product composition to make it easy to select only necessary parts.
Consult to Tohnichi for selection of Calibration Kit.

Special
Group Applicable Model Calibration Stand
Attachment

Calibration Stand Model Adjustment Tool B 10mm Adjustment Tool C 40mm Adjusting Tool D 113mm
Metric,
Calibration Kit S.I. model Multi Unit

Spirit Level Clamp Knob Adjust Nut Calibration Frame Stand Weight Nut Adjustment Foot Adjustment Tool A AD-DOTCL-A AD-DOTCL-B AD-DOTCL-C AD-TCCTCL2 Joint Rod A 380mm JR-DOTCL-A Joint Rod B 480mm JR-DOTCL-B Joint Rod C 180mm JR-DOTCL-C Calibration Adapter KA-TCCTCL2 Calibration Parts P-TCCTCL100N-D Joint Rod for TCC JR-TCCTCL2

DOT35N 350DOT
DOT50N 500DOT
DOTE20N 200DOTE2
DOTE36N 360DOTE2
DOTCL-S1
DOTE20N3 DOTE20N3-G
DOTE50N3 DOTE50N3-G
DOTE20N4 DOTE20N4-G
DOTE50N4 DOTE50N4-G
DOT100N 1000DOT
KS-DOTCL-S DOTE100N3 DOTE100N3-G
DOTCL-S2 DOTE100N 1000DOTE2

DOTE100N4-G
DOTE100N4
DOTE200N 2000DOTE2
DOTCL-S3 DOTE200N3 DOTE200N3-G
DOTE200N4 DOTE200N4-G
DOT300N 3000DOT
DOTCL-S4
DOT360N 3600DOT2
TCCTCL-S1 TCC100N2 TCC100N2-G

TCCTCL-S2 TCC100N2-D TCC100N2-D-G
DOT700N 7000DOT
DOTCL-L1 DOTE700N 7000DOTE2
DOTE500N3 DOTE500N3-G
DOTE1000N 10000DOTE2
DOTCL-L2 DOTE1000N3 DOTE1000N3-G
DOTCL-L3 KS-DOTCL-L DOTE500N4 DOTE500N4-G
DOTCL-L4 DOTE1000N4 DOTE1000N4-G Torque Tester/Checker

TCCTCL-L1 TCC500N2 TCC500N2-G

TCCTCL-L2 TCC1000N2 TCC1000N2-G

Previous KS-DOTCL Component
Note
1. Refer to above table and page 59 for required units when additionally purchase a calibration unit.
2. Con?rm the component of your DOTCL/TCCTCL and if you need, purchase the parts of Calibration Stand, Special Attachment, Lever and Reaction Unit for Calibrating tester.
3. The previous "KS-DOTCL" is one of the components of the previous calibration kits model DOTCL36N/100N/200N/360N/700N/1000N.
4. For TCC previous models, contact to Tohnichi.
Example of Combination
Calibrate DOTE1000N4-G with previous KS-DOTCL : Required an Adjusting Rod D 113mm "AD-TCCTCL2", and Calibration Lever and Reaction Unit of DOTE1000N4-G and weights.
Calibrate DOTE500N4-G with DOTCL-S2 : Required an Adjusting Rod 113mm "AD-TCCTCL2", Joint Rod C 180mm "JR-DOTCL-C", and Calibration Lever and Reaction Unit of DOTE500N4-G
and weights.
