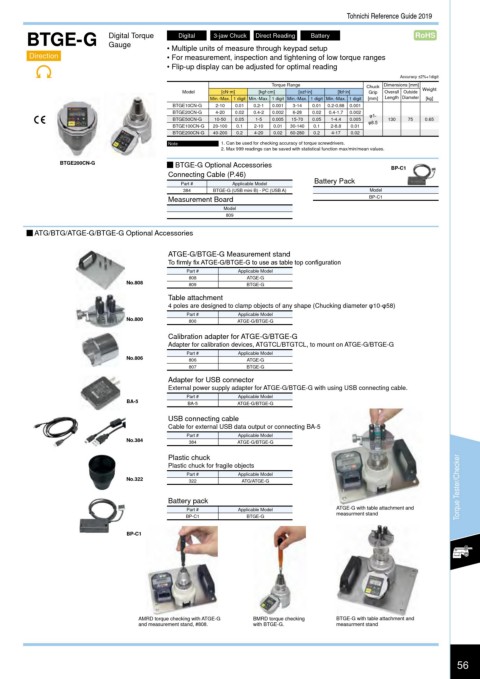

Tohnichi Reference Guide 2019
BTGE-G Digital Torque Digital 3-jaw Chuck Direct Reading Battery RoHS
Gauge
Direction ? Multiple units of measure through keypad setup
? For measurement, inspection and tightening of low torque ranges
? Flip-up display can be adjusted for optimal reading
Accuracy ±2%+1digit
Torque Range Chuck Dimensions [mm]
Model [cN·m] [kgf·cm] [ozf·in] [lbf·in] Grip Overall Outside Weight
Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit [mm] Length Diameter [kg]
BTGE10CN-G 2-10 0.01 0.2-1 0.001 3-14 0.01 0.2-0.88 0.001
BTGE20CN-G 4-20 0.02 0.4-2 0.002 6-28 0.02 0.4-1.7 0.002 ?1-
BTGE50CN-G 10-50 0.05 1-5 0.005 15-70 0.05 1-4.4 0.005 130 75 0.65
BTGE100CN-G 20-100 0.1 2-10 0.01 30-140 0.1 2-8.8 0.01 ?8.5
BTGE200CN-G 40-200 0.2 4-20 0.02 60-280 0.2 4-17 0.02
Note 1. Can be used for checking accuracy of torque screwdrivers.
2. Max 999 readings can be saved with statistical function max/min/mean values.
BTGE200CN-G BTGE-G Optional Accessories BP-C1
Connecting Cable (P.46)
Part # Applicable Model Battery Pack
384 BTGE-G (USB mini B) - PC (USB A) Model
Measurement Board BP-C1
Model
809
ATG/BTG/ATGE-G/BTGE-G Optional Accessories

ATGE-G/BTGE-G Measurement stand
To ?rmly ?x ATGE-G/BTGE-G to use as table top con?guration
Part # Applicable Model
808 ATGE-G
No.808 809 BTGE-G
Table attachment
4 poles are designed to clamp objects of any shape (Chucking diameter ?10-?58)
Part # Applicable Model
No.800 800 ATGE-G/BTGE-G
Calibration adapter for ATGE-G/BTGE-G
Adapter for calibration devices, ATGTCL/BTGTCL, to mount on ATGE-G/BTGE-G
Part # Applicable Model
No.806 806 ATGE-G
807 BTGE-G
Adapter for USB connector
External power supply adapter for ATGE-G/BTGE-G with using USB connecting cable.
Part # Applicable Model
BA-5 BA-5 ATGE-G/BTGE-G
USB connecting cable
Cable for external USB data output or connecting BA-5
Part # Applicable Model
No.384 384 ATGE-G/BTGE-G
Plastic chuck
Plastic chuck for fragile objects
Part # Applicable Model
No.322 322 ATG/ATGE-G Torque Tester/Checker

Battery pack
Part # Applicable Model ATGE-G with table attachment and
BP-C1 BTGE-G measurment stand
BP-C1

AMRD torque checking with ATGE-G BMRD torque checking BTGE-G with table attachment and
and measurement stand, #808. with BTGE-G. measurment stand
