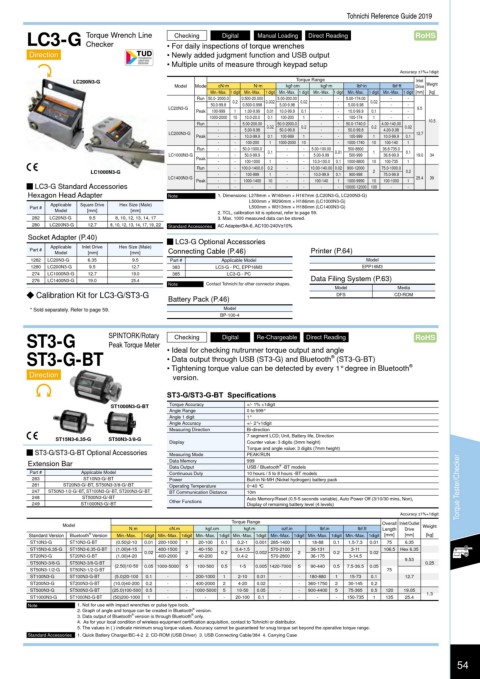

Tohnichi Reference Guide 2019
LC3-G Torque Wrench Line ? For daily inspections of torque wrenches Direct Reading RoHS
Digital
Checking
Manual Loading
Checker
Direction ? Newly added judgment function and USB output
? Multiple units of measure through keypad setup
Accuracy ±1%+1digit
LC200N3-G Torque Range Inlet
Model Mode cN·m N·m kgf·cm kgf·m lbf·in lbf·ft Drive Weight
Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit [mm] [kg]
Run 50.0- 2000.0 0.2 0.500-20.000 0.002 5.00-200.00 0.02 - - 5.00-174.00 0.02 - -
50.0-99.8 0.500-0.998 5.00-9.98 - - 5.00-9.98 - -
LC20N3-G 9.5
Peak 100-999 1 1.00-9.99 0.01 10.0-99.9 0.1 - - 10.0-99.9 0.1 - -
1000-2000 10 10.0-20.0 0.1 100-200 1 - - 100-174 1 - -
Run - - 5.00-200.00 0.02 50.0-2000.0 0.2 - - 50.0-1740.0 0.2 4.00-140.00 0.02 10.5
- - 5.00-9.98 50.0-99.8 - - 50.0-99.8 4.00-9.98
LC200N3-G 12.7
Peak - - 10.0-99.9 0.1 100-999 1 - - 100-999 1 10.0-99.9 0.1
- - 100-200 1 1000-2000 10 - - 1000-1740 10 100-140 1
Run - - 50.0-1000.0 - - 5.00-100.00 500-8800 36.8-735.0
LC1000N3-G - - 50.0-99.9 0.1 - - 5.00-9.99 0.01 500-999 1 36.8-99.9 0.1 19.0 34
Peak
- - 100-1000 1 - - 10.0-100.0 0.1 1000-8800 10 100-735 1
Run - - 100.0-1400.0 0.2 - - 10.00-140.00 0.02 900-12000 75.0-1000.0
LC1000N3-G - - 100-999 1 - - 10.0-99.9 0.1 900-998 2 75.0-99.8 0.2
LC1400N3-G Peak - - 1000-1400 10 - - 100-140 1 1000-9990 10 100-1000 1 25.4 39
LC3-G Standard Accessories - - - - - - - - 10000-12000 100 - -
Hexagon Head Adapter Note 1. Dimensions: L278mm × W160mm × H167mm (LC20N3-G, LC200N3-G)
L500mm × W290mm × H186mm (LC1000N3-G)
Part # Applicable Square Drive Hex Size (Male) L500mm × W313mm × H186mm (LC1400N3-G)
Model [mm] [mm] 2. TCL, calibration kit is optional, refer to page 59.
282 LC20N3-G 9.5 8, 10, 12, 13, 14, 17 3. Max. 1000 measured data can be stored.
280 LC200N3-G 12.7 8, 10, 12, 13, 14, 17, 19, 22 Standard Accessories AC Adapter/BA-6, AC100-240V±10%
Socket Adapter (P.40) LC3-G Optional Accessories
Applicable Inlet Drive Hex Size (Male)
Part # Connecting Cable (P.46) Printer (P.64)
Model [mm] [mm]
1282 LC20N3-G 6.35 9.5 Part # Applicable Model Model
1280 LC200N3-G 9.5 12.7 383 LC3-G - PC, EPP16M3 EPP16M3
274 LC1000N3-G 12.7 19.0 385 LC3-G - PC
276 LC1400N3-G 19.0 25.4 Data Filing System (P.63)
Note Contact Tohnichi for other connector shapes.
Model Media
Calibration Kit for LC3-G/ST3-G DFS CD-ROM
Battery Pack (P.46)
* Sold separately. Refer to page 59. Model
BP-100-4
ST3-G SPINTORK/Rotary Checking Digital Re-Chargeable Direct Reading RoHS
Peak Torque Meter
ST3-G-BT ? Ideal for checking nutrunner torque output and angle ®
? Data output through USB (ST3-G) and Bluetooth (ST3-G-BT)
®
Direction ? Tightening torque value can be detected by every 1° degree in Bluetooth
version.
ST3-G/ST3-G-BT Specifications
ST1000N3-G-BT Torque Accuracy +/- 1% +1digit
Angle Range 0 to 999°
Angle 1 digit 1°
Angle Accuracy +/- 2°+1digit
Measuring Direction Bi-direction
7 segment LCD; Unit, Battery life, Direction
ST15N3-6.35-G ST50N3-3/8-G Display Counter value: 3 digits (3mm height)
ST3-G/ST3-G-BT Optional Accessories Measuring Mode Torque and angle value: 3 digits (7mm height)
PEAK/RUN
Extension Bar Data Memory 999
®
Data Output USB / Bluetooth -BT models
Part # Applicable Model Continuous Duty 10 hours / 5 to 8 hours -BT models
283 ST10N3-G/-BT Power Buit-in Ni-MH (Nickel hydrogen) battery pack
281 ST20N3-G/-BT, ST50N3-3/8-G/-BT Operating Temperature 0~40 °C Torque Tester/Checker
247 ST50N3-1/2-G/-BT, ST100N3-G/-BT, ST200N3-G/-BT BT Communication Distance 10m
248 ST500N3-G/-BT Auto Memory/Reset (0.5-5 seconds variable), Auto Power Off (3/10/30 mins, Non),
249 ST1000N3-G/-BT Other Functions Display of remaining battery level (4 levels)
Accuracy ±1%+1digit
Torque Range
Model Overall Inlet/Outlet Weight
N.m cN.m kgf.cm kgf.m ozf.in lbf.in lbf.ft Length Drive
Standard Version Bluetooth Version Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit [mm] [mm] [kg]
®
ST10N3-G ST10N3-G-BT (0.50)2-10 0.01 200-1000 1 20-100 0.1 0.2-1 0.001 285-1400 1 18-88 0.1 1.5-7.3 0.01 75 6.35
ST15N3-6.35-G ST15N3-6.35-G-BT (1.00)4-15 0.02 400-1500 2 40-150 0.2 0.4-1.5 0.002 570-2100 2 36-131 0.2 3-11 0.02 106.5 Hex 6.35
ST20N3-G ST20N3-G-BT (1.00)4-20 400-2000 40-200 0.4-2 570-2800 36-175 3-14.5 9.53
ST50N3-3/8-G ST50N3-3/8-G-BT (2.50)10-50 0.05 1000-5000 5 100-500 0.5 1-5 0.005 1420-7000 5 90-440 0.5 7.5-36.5 0.05 0.25
ST50N3-1/2-G ST50N3-1/2-G-BT 75
ST100N3-G ST100N3-G-BT (5.0)20-100 0.1 - - 200-1000 1 2-10 0.01 - - 180-880 1 15-73 0.1 12.7
ST200N3-G ST200N3-G-BT (10.0)40-200 0.2 - - 400-2000 2 4-20 0.02 - - 360-1750 2 30-145 0.2
ST500N3-G ST500N3-G-BT (25.0)100-500 0.5 - - 1000-5000 5 10-50 0.05 - - 900-4400 5 75-365 0.5 120 19.05 1.3
ST1000N3-G ST1000N3-G-BT (50)200-1000 1 - - - - 20-100 0.1 - - - - 150-735 1 135 25.4
Note 1. Not for use with impact wrenches or pulse type tools.
®
2. Graph of angle and torque can be created in Bluetooth version.
®
®
3. Data output of Bluetooth version is through Bluetooth only.
4. As for your local condition of wireless equipment certi?cation acquisition, contact to Tohnichi or distributor.
5. The values in ( ) indicate minimum snug torque values. Accuracy cannot be guaranteed for snug torque set beyond the operative torque range.
Standard Accessories 1. Quick Battery Charger/BC-4-2 2. CD-ROM (USB Driver) 3. USB Connecting Cable/384 4. Carrying Case
