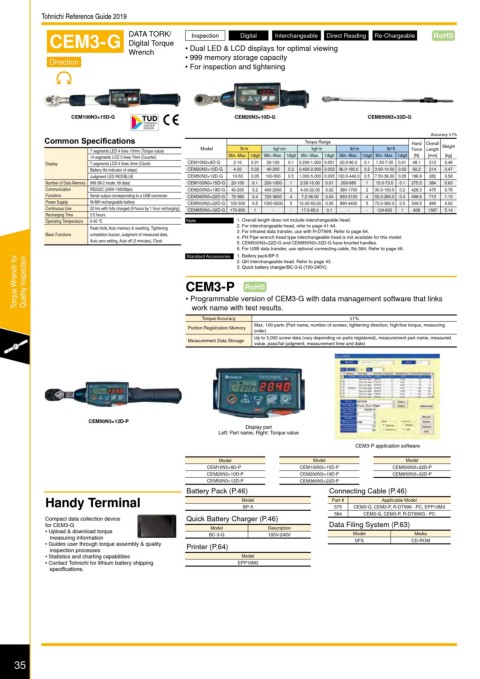

Tohnichi Reference Guide 2019
CEM3-G DATA TORK/ Inspection Digital Interchangeable Direct Reading Re-Chargeable RoHS
Digital Torque
Wrench ? Dual LED & LCD displays for optimal viewing
Direction ? 999 memory storage capacity
? For inspection and tightening

CEM100N3×15D-G CEM20N3×10D-G CEM850N3×32D-G
Accuracy ±1%
Common Specifications Torque Range Hand Overall
7 segments LED 4 lines 10mm (Torque value) Model N·m kgf·cm kgf·m lbf·in lbf·ft Force Length Weight
14 segments LCD 3 lines 7mm (Counter) Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit [N] [mm] [kg]
Display 7 segments LCD 4 lines 3mm (Clock) CEM10N3×8D-G 2-10 0.01 20-100 0.1 0.200-1.000 0.001 20.0-90.0 0.1 1.50-7.30 0.01 48.1 212 0.46
Battery life indicator (4 steps) CEM20N3×10D-G 4-20 0.02 40-200 0.2 0.400-2.000 0.002 36.0-180.0 0.2 3.00-14.50 0.02 92.2 214 0.47
Judgment LED RED/BLUE CEM50N3×12D-G 10-50 0.05 100-500 0.5 1.000-5.000 0.005 100.0-440.0 0.5 7.50-36.00 0.05 196.9 282 0.58
Number of Data Memory 999 (M-2 mode: 99 data) CEM100N3×15D-G 20-100 0.1 200-1000 1 2.00-10.00 0.01 200-880 1 15.0-73.0 0.1 275.5 384 0.63
Communication RS232C (2400-19200bps) CEM200N3×19D-G 40-200 0.2 400-2000 2 4.00-20.00 0.02 360-1700 2 30.0-150.0 0.2 428.3 475 0.78
Functions Serial output corresponding to a USB connecter CEM360N3×22D-G 72-360 0.4 720-3600 4 7.2-36.00 0.04 650-3100 4 52.0-260.0 0.4 498.6 713 1.13
Power Supply Ni-MH rechargeable battery CEM500N3×22D-G 100-500 0.5 1000-5000 5 10.00-50.00 0.05 890-4400 5 73.0-360.0 0.5 549.5 949 4.00
Continuous Use 20 hrs with fully charged (8 hours by 1 hour recharging) CEM850N3×32D-G 170-850 1 - - 17.0-85.0 0.1 - - 124-620 1 608 1387 5.14
Recharging Time 3.5 hours
Operating Temperature 0-40 °C Note 1. Overall length does not include interchangeable head.
Peak Hold, Auto memory & resetting, Tightening 2. For interchangeable head, refer to page 41-44.
Basic Functions completion buzzer, Judgment of measured data, 3. For infrared data transfer, use with R-DT999. Refer to page 64.
4. PH Pipe wrench head type interchangeable head is not available for this model.
Auto zero setting, Auto off (3 minutes), Clock 5. CEM500N3×22D-G and CEM850N3×32D-G have knurled handles.
6. For USB data transfer, use optional connecting cable, No.584. Refer to page 46.
1. Battery pack/BP-5
Standard Accessories
Torque Wrench for Quality Inspection CEM3-P 3. Quick battery charger/BC-3-G (100-240V).
2. QH interchangeable head. Refer to page 43.
RoHS
? Programmable version of CEM3-G with data management software that links
work name with test results.
Torque Accuracy ±1%
Max. 100 parts (Part name, number of screws, tightening direction, high/low torque, measuring
Portion Registration Memory
order)
Up to 3,000 screw data (vary depending on parts registered), measurement part name, measured
Measurement Data Storage
value, pass/fail judgment, measurement time and date)

CEM50N3×12D-P
Display part
Left: Part name, Right: Torque value
CEM3-P application software
Model Model Model
CEM10N3×8D-P CEM100N3×15D-P CEM500N3×22D-P
CEM20N3×10D-P CEM200N3×19D-P CEM850N3×32D-P
CEM50N3×12D-P CEM360N3×22D-P
Battery Pack (P.46) Connecting Cable (P.46)
Handy Terminal Model Part # CEM3-G, CEM3-P, R-DT999 - PC, EPP16M3
Applicable Model
575
BP-5
584 CEM3-G, CEM3-P, R-DT999G - PC
Compact data collection device Quick Battery Charger (P.46)
for CEM3-G Model Description Data Filing System (P.63)
? Upload & download torque BC-3-G 100V-240V Model Media
measuring information DFS CD-ROM
? Guides user through torque assembly & quality Printer (P.64)
inspection processes
? Statistics and charting capabilities Model
? Contact Tohnichi for lithium battery shipping EPP16M3
speci?cations.
