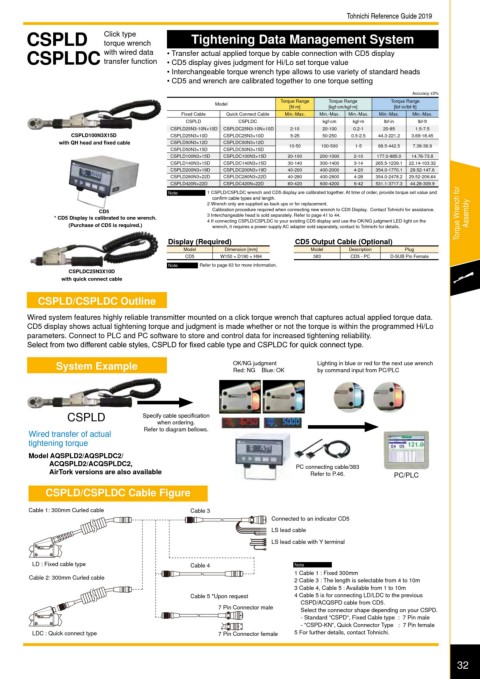

Tohnichi Reference Guide 2019
CSPLD Click type Tightening Data Management System
torque wrench
CSPLDC with wired data ? Transfer actual applied torque by cable connection with CD5 display
transfer function
? CD5 display gives judgment for Hi/Lo set torque value
? Interchangeable torque wrench type allows to use variety of standard heads
? CD5 and wrench are calibrated together to one torque setting
Accuracy ±3%
Torque Range Torque Range Torque Range
Model
[N·m] [kgf·cm/kgf·m] [lbf·in/lbf·ft]
Fixed Cable Quick Connect Cable Min.-Max. Min.-Max. Min.-Max. Min.-Max. Min.-Max.
CSPLD CSPLDC kgf·cm kgf·m lbf·in lbf·ft
CSPLD25N3-10N×10D CSPLDC25N3-10N×10D 2-10 20-100 0.2-1 20-85 1.5-7.5
CSPLD100N3X15D CSPLD25N3×10D CSPLDC25N3×10D 5-25 50-250 0.5-2.5 44.3-221.2 3.69-18.45
with QH head and fixed cable CSPLD50N3×12D CSPLDC50N3×12D 10-50 100-500 1-5 88.5-442.5 7.38-36.9
CSPLD50N3×15D CSPLDC50N3×15D
CSPLD100N3×15D CSPLDC100N3×15D 20-100 200-1000 2-10 177.0-885.0 14.76-73.8
CSPLD140N3×15D CSPLDC140N3×15D 30-140 300-1400 3-14 265.5-1239.1 22.14-103.32
CSPLD200N3×19D CSPLDC200N3×19D 40-200 400-2000 4-20 354.0-1770.1 29.52-147.6
CSPLD280N3×22D CSPLDC280N3×22D 40-280 400-2800 4-28 354.0-2478.2 29.52-206.64
CSPLD420N×22D CSPLDC420N×22D 60-420 600-4200 6-42 531.1-3717.3 44.28-309.9
Note 1 CSPLD/CSPLDC wrench and CD5 display are calibrated together. At time of order, provide torque set value and
con?rm cable types and length.
2 Wrench only are supplied as back ups or for replacement.
CD5 Calibration procedure required when connecting new wrench to CD5 Display. Contact Tohnichi for assistance. Torque Wrench for
* CD5 Display is calibrated to one wrench. 3 Interchangeable head is sold separately. Refer to page 41 to 44. Assembly
4 If connecting CSPLD/CSPLDC to your existing CD5 display and use the OK/NG judgment LED light on the
(Purchase of CD5 is required.) wrench, it requires a power supply AC adapter sold separately, contact to Tohnichi for details.
Display (Required) CD5 Output Cable (Optional)
Model Dimension [mm] Model Description Plug
CD5 W150 × D190 × H94 383 CD5 - PC D-SUB Pin Female
Note Refer to page 63 for more information.
CSPLDC25N3X10D
with quick connect cable

CSPLD/CSPLDC Outline
Wired system features highly reliable transmitter mounted on a click torque wrench that captures actual applied torque data.
CD5 display shows actual tightening torque and judgment is made whether or not the torque is within the programmed Hi/Lo
parameters. Connect to PLC and PC software to store and control data for increased tightening reliability.
Select from two different cable styles, CSPLD for ?xed cable type and CSPLDC for quick connect type.

System Example OK/NG judgment Lighting in blue or red for the next use wrench
by command input from PC/PLC
Red: NG Blue: OK

CSPLD Specify cable speci?cation
when ordering.
Refer to diagram bellows.
Wired transfer of actual
tightening torque
Model AQSPLD2/AQSPLDC2/
ACQSPLD2/ACQSPLDC2, PC connecting cable/383
AirTork versions are also available Refer to P.46. PC/PLC

CSPLD/CSPLDC Cable Figure

Cable 1: 300mm Curled cable Cable 3
Connected to an indicator CD5
LS lead cable
LS lead cable with Y terminal

LD : Fixed cable type Cable 4 Note
1 Cable 1 : Fixed 300mm
Cable 2: 300mm Curled cable 2 Cable 3 : The length is selectable from 4 to 10m
3 Cable 4, Cable 5 : Available from 1 to 10m
Cable 5 *Upon request 4 Cable 5 is for connecting LD/LDC to the previous
CSPD/ACQSPD cable from CD5.
7 Pin Connector male Select the connector shape depending on your CSPD.
- Standard "CSPD", Fixed Cable type : 7 Pin male
- "CSPD-KN", Quick Connector Type : 7 Pin female
LDC : Quick connect type 7 Pin Connector female 5 For further details, contact Tohnichi.

32
