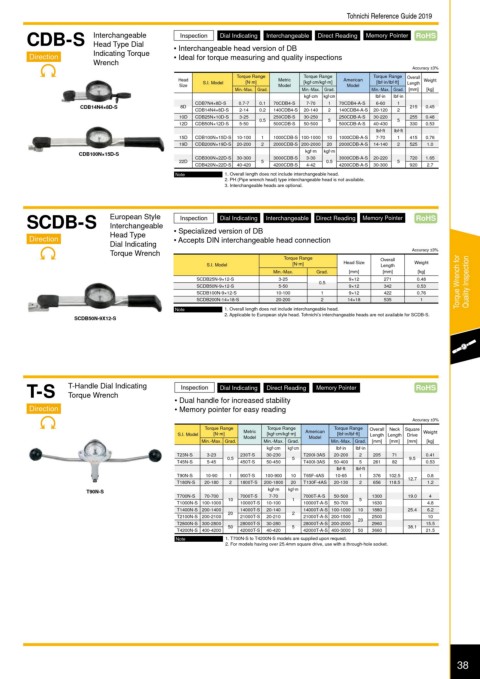

Page 41 - Tohnichi_CIP

Tohnichi Reference Guide 2019
CDB-S Interchangeable Inspection Dial Indicating Interchangeable Direct Reading Memory Pointer RoHS
Head Type Dial
Direction Indicating Torque ? Interchangeable head version of DB
? Ideal for torque measuring and quality inspections
Wrench
Accuracy ±3%
Torque Range Torque Range Torque Range
Head S.I. Model [N·m] Metric [kgf·cm/kgf·m] American [lbf·in/lbf·ft] Overall Weight
Size Model Model Length
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. [mm] [kg]
kgf·cm kgf·cm lbf·in lbf·in
CDB7N4×8D-S 0.7-7 0.1 70CDB4-S 7-70 1 70CDB4-A-S 6-60 1
CDB14N4×8D-S 8D CDB14N4×8D-S 2-14 0.2 140CDB4-S 20-140 2 140CDB4-A-S 20-120 2 215 0.45
10D CDB25N×10D-S 3-25 0.5 250CDB-S 30-250 5 250CDB-A-S 30-220 5 255 0.48
12D CDB50N×12D-S 5-50 500CDB-S 50-500 500CDB-A-S 40-430 330 0.53
lbf·ft lbf·ft
15D CDB100N×15D-S 10-100 1 1000CDB-S 100-1000 10 1000CDB-A-S 7-70 1 415 0.76
19D CDB200N×19D-S 20-200 2 2000CDB-S 200-2000 20 2000CDB-A-S 14-140 2 525 1.0
kgf·m kgf·m
CDB100N×15D-S
22D CDB300N×22D-S 30-300 5 3000CDB-S 3-30 0.5 3000CDB-A-S 20-220 5 720 1.65
CDB420N×22D-S 40-420 4200CDB-S 4-42 4200CDB-A-S 30-300 920 2.7
Note 1. Overall length does not include interchangeable head.
2. PH (Pipe wrench head) type interchangeable head is not available.
3. Interchangeable heads are optional.
SCDB-S European Style Inspection Dial Indicating Interchangeable Direct Reading Memory Pointer RoHS
Interchangeable
Head Type ? Specialized version of DB
Direction ? Accepts DIN interchangeable head connection
Dial Indicating
Torque Wrench Accuracy ±3%
Torque Range Overall
S.I. Model [N·m] Head Size Length Weight
Min.-Max. Grad. [mm] [mm] [kg]
SCDB25N-9×12-S 3-25 0.5 9×12 271 0.48 Torque Wrench for Quality Inspection
SCDB50N-9×12-S 5-50 9×12 342 0.53
SCDB100N-9×12-S 10-100 1 9×12 422 0.76
SCDB200N-14×18-S 20-200 2 14×18 535 1
Note 1. Overall length does not include interchangeable head.
SCDB50N-9X12-S 2. Applicable to European style head. Tohnichi?s interchangeable heads are not available for SCDB-S.

T-S T-Handle Dial Indicating Inspection Dial Indicating Direct Reading Memory Pointer RoHS
Torque Wrench
? Dual handle for increased stability
Direction ? Memory pointer for easy reading
Accuracy ±3%
Torque Range Torque Range Torque Range Overall Neck Square
S.I. Model [N·m] Metric [kgf·cm/kgf·m] American [lbf·in/lbf·ft] Length Length Drive Weight
Model
Model
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. [mm] [mm] [mm] [kg]
kgf·cm kgf·cm lbf·in lbf·in
T23N-S 3-23 0.5 230T-S 30-230 5 T200I-3AS 20-200 2 205 71 9.5 0.41
T45N-S 5-45 450T-S 50-450 T400I-3AS 50-400 5 261 82 0.53
lbf·ft lbf·ft
T90N-S 10-90 1 900T-S 100-900 10 T65F-4AS 10-65 1 376 102.5 12.7 0.8
T180N-S 20-180 2 1800T-S 200-1800 20 T130F-4AS 20-130 2 656 118.5 1.2
T90N-S kgf·m kgf·m
T700N-S 70-700 10 7000T-S 7-70 1 7000T-A-S 50-500 5 1300 19.0 4
T1000N-S 100-1000 10000T-S 10-100 10000T-A-S 50-700 1630 4.8
T1400N-S 200-1400 20 14000T-S 20-140 2 14000T-A-S 100-1000 10 1880 25.4 6.2
T2100N-S 200-2100 21000T-S 20-210 21000T-A-S 200-1500 20 2500 10
T2800N-S 300-2800 28000T-S 30-280 28000T-A-S 200-2000 2960 15.5
T4200N-S 400-4200 50 42000T-S 40-420 5 42000T-A-S 400-3000 50 3660 38.1 21.5
Note 1. T700N-S to T4200N-S models are supplied upon request.
2. For models having over 25.4mm square drive, use with a through-hole socket.

38
