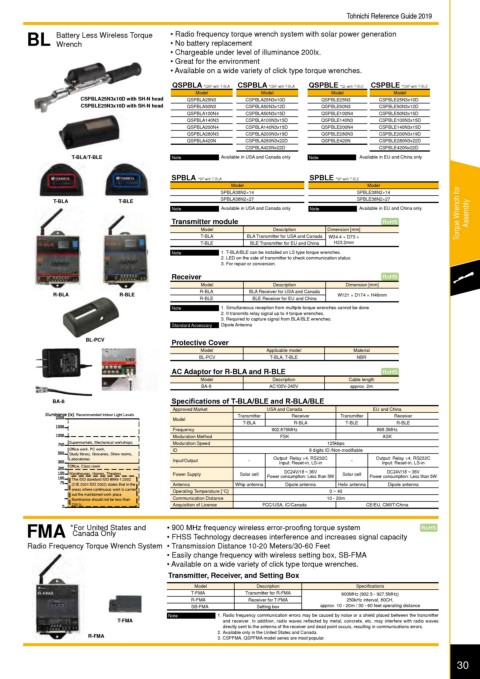

Tohnichi Reference Guide 2019
BL Battery Less Wireless Torque ? Radio frequency torque wrench system with solar power generation
? No battery replacement
Wrench
? Chargeable under level of illuminance 200lx.
? Great for the environment
? Available on a wide variety of click type torque wrenches.

QSPBLA *QSP with T-BLA CSPBLA *CSP with T-BLA QSPBLE *QL with T-BLE CSPBLE *CSP with T-BLE
Model Model Model Model
CSPBLA25N3x10D with SH-N head QSPBLA25N3 CSPBLA25N3x10D QSPBLE25N3 CSPBLE25N3x10D
CSPBLE25N3x10D with SH-N head QSPBLA50N3 CSPBLA50N3x12D QSPBLE50N3 CSPBLE50N3x12D
QSPBLA100N4 CSPBLA50N3x15D QSPBLE100N4 CSPBLE50N3x15D
QSPBLA140N3 CSPBLA100N3x15D QSPBLE140N3 CSPBLE100N3x15D
QSPBLA200N4 CSPBLA140N3x15D QSPBLE200N4 CSPBLE140N3x15D
QSPBLA280N3 CSPBLA200N3x19D QSPBLE280N3 CSPBLE200N3x19D
QSPBLA420N CSPBLA280N3x22D QSPBLE420N CSPBLE280N3x22D
CSPBLA420Nx22D CSPBLE420Nx22D
T-BLA/T-BLE Note Available in USA and Canada only Note Available in EU and China only

SPBLA *SP with T-BLA SPBLE *SP with T-BLE
Model Model
SPBLA38N2×14 SPBLE38N2×14
T-BLA T-BLE SPBLA38N2×27 SPBLE38N2×27
Note Available in USA and Canada only Note Available in EU and China only Torque Wrench for Assembly
Transmitter module RoHS
Model Description Dimension [mm]
T-BLA BLA Transmitter for USA and Canada W34.4 × D73 ×
T-BLE BLE Transmitter for EU and China H23.2mm
Note 1. T-BLA/BLE can be installed on LS type torque wrenches.
2. LED on the side of transmitter to check communication status
3. For repair or conversion.
Receiver RoHS
Model Description Dimension [mm]
R-BLA BLA Receiver for USA and Canada
R-BLA R-BLE W121 × D174 × H46mm
R-BLE BLE Receiver for EU and China
Note 1. Simultaneous reception from multiple torque wrenches cannot be done.
2. It transmits relay signal up to 4 torque wrenches.
3. Required to capture signal from BLA/BLE wrenches.
Standard Accessary Dipole Antenna
BL-PCV Protective Cover
Model Applicable model Material
BL-PCV T-BLA, T-BLE NBR
AC Adaptor for R-BLA and R-BLE RoHS
Model Description Cable length
BA-8 AC100V-240V approx. 2m

BA-8 Specifications of T-BLA/BLE and R-BLA/BLE
Approved Market USA and Canada EU and China
Recommended Indoor Light Levels Transmitter Receiver Transmitter Receiver
Model
T-BLA R-BLA T-BLE R-BLE
Frequency 902.875MHz 868.3MHz
Moduration Method FSK ASK
Supermarkets, Mechanical workshops Moduration Speed 125kbps
Office work, PC work, ID 8 digits ID /Non-modi?able
Study library, Groceries, Show rooms,
Laboratories Input/Output - Output: Relay ×4, RS232C - Output: Relay ×4, RS232C
Office, Class room Input: Reset-in, LS-in Input: Reset-in, LS-in
DC24V/18 ~ 36V
DC24V/18 ~ 36V
Warehouses, Homes, Theaters Power Supply Solar cell Power consumption: Less than 5W Solar cell Power consumption: Less than 5W
The ISO standard ISO 8995-1:2002
(CIE 2001/ISO 2002) states that in the Antenna Whip antenna Dipole antenna Helix antenna Dipole antenna
areas where continuous work is carried Operating Temperature [°C] 0 ~ 40
out the maintained work place
illuminance should not be less than Communication Distance 10 - 20m
200 lx. Acquisition of License FCC/USA, IC/Canada CE/EU, CMIIT/China
FMA *For United States and ? 900 MHz frequency wireless error-proo?ng torque system RoHS
Canada Only
? FHSS Technology decreases interference and increases signal capacity
Radio Frequency Torque Wrench System ? Transmission Distance 10-20 Meters/30-60 Feet
? Easily change frequency with wireless setting box, SB-FMA
? Available on a wide variety of click type torque wrenches.
Transmitter, Receiver, and Setting Box
Model Description Speci?cations
T-FMA Transmitter for R-FMA 900MHz (902.5 - 927.5MHz)
R-FMA Receiver for T-FMA 250kHz interval, 80CH,
SB-FMA Setting box approx. 10 - 20m / 30 - 60 feet operating distance
Note 1. Radio frequency communication errors may be caused by noise or a shield placed between the transmitter
T-FMA and receiver. In addition, radio waves reflected by metal, concrete, etc. may interfere with radio waves
directly sent to the antenna of the receiver and dead point occurs, resulting in communications errors.
2. Available only in the United States and Canada.
R-FMA 3. CSPFMA, QSPFMA model series are most popular.

30
