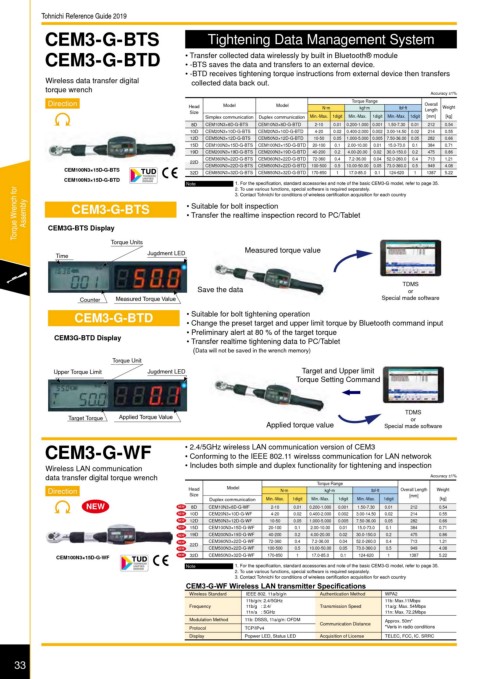

Tohnichi Reference Guide 2019
CEM3-G-BTS Tightening Data Management System

CEM3-G-BTD ? Transfer collected data wirelessly by built in Bluetooth® module
? -BTS saves the data and transfers to an external device.
? -BTD receives tightening torque instructions from external device then transfers
Wireless data transfer digital collected data back out.
torque wrench
Accuracy ±1%
Direction Head Model Model N·m Torque Range lbf·ft Overall Weight
kgf·m
Size Length
Simplex communication Duplex communication Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit [mm] [kg]
8D CEM10N3×8D-G-BTS CEM10N3×8D-G-BTD 2-10 0.01 0.200-1.000 0.001 1.50-7.30 0.01 212 0.54
10D CEM20N3×10D-G-BTS CEM20N3×10D-G-BTD 4-20 0.02 0.400-2.000 0.002 3.00-14.50 0.02 214 0.55
12D CEM50N3×12D-G-BTS CEM50N3×12D-G-BTD 10-50 0.05 1.000-5.000 0.005 7.50-36.00 0.05 282 0.66
15D CEM100N3×15D-G-BTS CEM100N3×15D-G-BTD 20-100 0.1 2.00-10.00 0.01 15.0-73.0 0.1 384 0.71
19D CEM200N3×19D-G-BTS CEM200N3×19D-G-BTD 40-200 0.2 4.00-20.00 0.02 30.0-150.0 0.2 475 0.86
CEM360N3×22D-G-BTS CEM360N3×22D-G-BTD 72-360 0.4 7.2-36.00 0.04 52.0-260.0 0.4 713 1.21
22D CEM500N3×22D-G-BTS CEM500N3×22D-G-BTD 100-500 0.5 10.00-50.00 0.05 73.0-360.0 0.5 949 4.08
CEM100N3×15D-G-BTS 32D CEM850N3×32D-G-BTS CEM850N3×32D-G-BTD 170-850 1 17.0-85.0 0.1 124-620 1 1387 5.22
CEM100N3×15D-G-BTD Note 1. For the speci?cation, standard accessories and note of the basic CEM3-G model, refer to page 35.
Torque Wrench for Assembly CEM3G-BTS Display ? Suitable for bolt inspection
2. To use various functions, special software is required separately.
3. Contact Tohnichi for conditions of wireless certi?cation acquisition for each country
CEM3-G-BTS
? Transfer the realtime inspection record to PC/Tablet

Torque Units
Measured torque value
Jugdment LED
Time

TDMS
Save the data or
Counter Measured Torque Value Special made software
CEM3-G-BTD ? Suitable for bolt tightening operation
? Change the preset target and upper limit torque by Bluetooth command input
? Preliminary alert at 80 % of the target torque
CEM3G-BTD Display ? Transfer realtime tightening data to PC/Tablet
(Data will not be saved in the wrench memory)
Torque Unit
Upper Torque Limit Jugdment LED Target and Upper limit
Torque Setting Command

TDMS
Target Torque Applied Torque Value or
Applied torque value Special made software

CEM3-G-WF ? 2.4/5GHz wireless LAN communication version of CEM3
? Conforming to the IEEE 802.11 wirelsss communication for LAN networok
Wireless LAN communication ? Includes both simple and duplex functionality for tightening and inspection
data transfer digital torque wrench Accuracy ±1%
Torque Range
Direction Head Model N·m kgf·m lbf·ft Overall Length Weight
Size [mm]
Duplex communication Min.-Max. 1digit Min.-Max. 1digit Min.-Max. 1digit [kg]
NEW NEW 8D CEM10N3×8D-G-WF 2-10 0.01 0.200-1.000 0.001 1.50-7.30 0.01 212 0.54
NEW 10D CEM20N3×10D-G-WF 4-20 0.02 0.400-2.000 0.002 3.00-14.50 0.02 214 0.55
NEW 12D CEM50N3×12D-G-WF 10-50 0.05 1.000-5.000 0.005 7.50-36.00 0.05 282 0.66
NEW 15D CEM100N3×15D-G-WF 20-100 0.1 2.00-10.00 0.01 15.0-73.0 0.1 384 0.71
NEW 19D CEM200N3×19D-G-WF 40-200 0.2 4.00-20.00 0.02 30.0-150.0 0.2 475 0.86
NEW 22D CEM360N3×22D-G-WF 72-360 0.4 7.2-36.00 0.04 52.0-260.0 0.4 713 1.21
NEW CEM500N3×22D-G-WF 100-500 0.5 10.00-50.00 0.05 73.0-360.0 0.5 949 4.08
CEM100N3×15D-G-WF NEW 32D CEM850N3×32D-G-WF 170-850 1 17.0-85.0 0.1 124-620 1 1387 5.22
Note 1. For the speci?cation, standard accessories and note of the basic CEM3-G model, refer to page 35.
2. To use various functions, special software is required separately.
3. Contact Tohnichi for conditions of wireless certi?cation acquisition for each country
CEM3-G-WF Wireless LAN transmitter Specifications
Wireless Standard IEEE 802. 11a/b/g/n Authentication Method WPA2
11b/g/n: 2.4/5GHz 11b: Max.11Mbps
Frequency 11b/g : 2.4/ Transmission Speed 11a/g: Max. 54Mbps
11n/a : 5GHz 11n: Max. 72.2Mbps
Modulation Method 11b: DSSS, 11a/g/n: OFDM Communication Distance Approx. 50m*
Protocol TCP/IPv4 *Veris in radio conditions
Display Popwer LED, Status LED Acquisition of License TELEC, FCC, IC. SRRC
