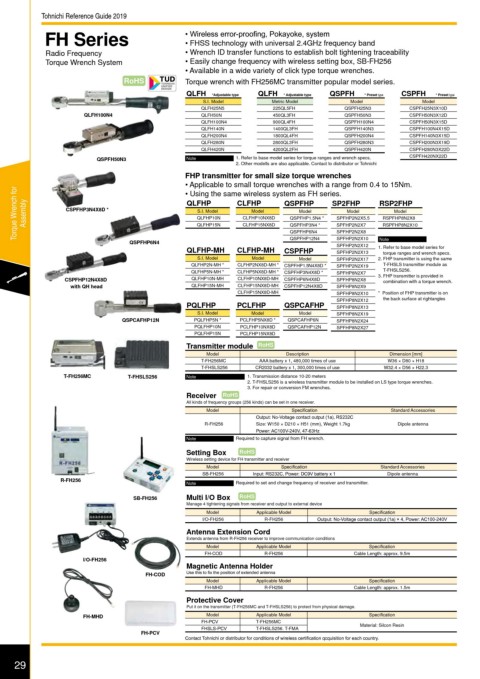

Tohnichi Reference Guide 2019
FH Series ? Wireless error-proo?ng, Pokayoke, system
? FHSS technology with universal 2.4GHz frequency band
Radio Frequency ? Wrench ID transfer functions to establish bolt tightening traceability
Torque Wrench System ? Easily change frequency with wireless setting box, SB-FH256
? Available in a wide variety of click type torque wrenches.
RoHS Torque wrench with FH256MC transmitter popular model series.
QLFH *Adjustable type QLFH * Adjustable type QSPFH * Preset type CSPFH * Preset type
S.I. Model Metric Model Model Model
QLFH25N5 225QL5FH QSPFH25N3 CSPFH25N3X10D
QLFH100N4 QLFH50N 450QL3FH QSPFH50N3 CSPFH50N3X12D
QLFH100N4 900QL4FH QSPFH100N4 CSPFH50N3X15D
QLFH140N 1400QL3FH QSPFH140N3 CSPFH100N4X15D
QLFH200N4 1800QL4FH QSPFH200N4 CSPFH140N3X15D
QLFH280N 2800QL3FH QSPFH280N3 CSPFH200N3X19D
QLFH420N 4200QL2FH QSPFH420N CSPFH280N3X22D
QSPFH50N3 Note 1. Refer to base model series for torque ranges and wrench specs. CSPFH420NX22D
2. Other modells are also applicable. Contact to distributor or Tohnichi
FHP transmitter for small size torque wrenches
? Applicable to small torque wrenches with a range from 0.4 to 15Nm.
Torque Wrench for Assembly CSPFHP3N4X8D * QLFHP CLFHP QSPFHP SP2FHP RSP2FHP
? Using the same wireless system as FH series.
S.I. Model
Model
Model
Model
Model
SPFHP2N2X5.5
QLFHP10N
RSPFHP8N2X8
QSPFHP1.5N4 *
CLFHP10NX8D
QLFHP15N
SPFHP2N2X7
RSPFHP8N2X10
QSPFHP3N4 *
CLFHP15NX8D
SPFHP2N2X10
QSPFHP12N4
QSPFHP6N4 QSPFHP6N4 SPFHP2N2X8 Note
SPFHP2N2X12
QLFHP-MH CLFHP-MH CSPFHP SPFHP2N2X13 1. Refer to base model series for
torque ranges and wrench specs.
S.I. Model Model Model SPFHP2N2X17 2. FHP transmitter is using the same
QLFHP2N-MH * CLFHP2NX8D-MH * CSPFHP1.5N4X8D * SPFHP2N2X19 T-FHSLS transmitter module as
QLFHP5N-MH * CLFHP5NX8D-MH * CSPFHP3N4X8D * SPFHP8N2X7 T-FHSLS256.
CSPFHP12N4X8D QLFHP10N-MH CLFHP10NX8D-MH CSPFHP6N4X8D SPFHP8N2X8 3. FHP transmitter is provided in
combination with a torque wrench.
with QH head QLFHP15N-MH CLFHP15NX8D-MH CSPFHP12N4X8D SPFHP8N2X9
CLFHP15NX8D-MH SPFHP8N2X10 * Position of FHP transmitter is on
SPFHP8N2X12 the back surface at rightangles
PQLFHP PCLFHP QSPCAFHP SPFHP8N2X13
S.I. Model Model Model SPFHP8N2X19
QSPCAFHP12N PQLFHP5N * PCLFHP5NX8D * QSPCAFHP6N SPFHP8N2X24
PQLFHP10N PCLFHP10NX8D QSPCAFHP12N SPFHP8N2X27
PQLFHP15N PCLFHP15NX8D
Transmitter module RoHS
Model Description Dimension [mm]
T-FH256MC AAA battery x 1, 480,000 times of use W36 × D80 × H18
T-FHSLS256 CR2032 battery x 1, 300,000 times of use W32.4 × D56 × H22.3
T-FH256MC T-FHSLS256 Note 1. Transmission distance 10-20 meters
2. T-FHSLS256 is a wireless transmitter module to be installed on LS type torque wrenches.
3. For repair or conversion FM wrenches.
Receiver RoHS
All kinds of frequency groups (256 kinds) can be set in one receiver.
Model Speci?cation Standard Accessories
Output: No-Voltage contact output (1a), RS232C
R-FH256 Size: W150 × D210 × H51 (mm), Weight 1.7kg Dipole antenna
Power: AC100V-240V, 47-63Hz
Note Required to capture signal from FH wrench.
Setting Box RoHS
Wireless setting device for FH transmitter and receiver
Model Speci?cation Standard Accessories
SB-FH256 Input: RS232C, Power: DC9V battery x 1 Dipole antenna
R-FH256
Note Required to set and change frequency of receiver and transmitter.
SB-FH256 Multi I/O Box RoHS
Manage 4 tightening signals from receiver and output to external device
Model Applicable Model Speci?cation
I/O-FH256 R-FH256 Output: No-Voltage contact output (1a) × 4, Power: AC100-240V
Antenna Extension Cord
Extends antenna from R-FH256 receiver to improve communication conditions
Model Applicable Model Speci?cation
FH-COD R-FH256 Cable Length: approx. 9.5m
I/O-FH256
Magnetic Antenna Holder
FH-COD Use this to ?x the position of extended antenna
Model Applicable Model Speci?cation
FH-MHD R-FH256 Cable Length: approx. 1.5m
Protective Cover
Put it on the transmitter (T-FH256MC and T-FHSLS256) to protect from physical damage.
FH-MHD Model Applicable Model Speci?cation
FH-PCV T-FH256MC Material: Silcon Resin
FHSLS-PCV T-FHSLS256. T-FMA
FH-PCV
Contact Tohnichi or distributor for conditions of wireless certi?cation qcquisition for each country.
29
