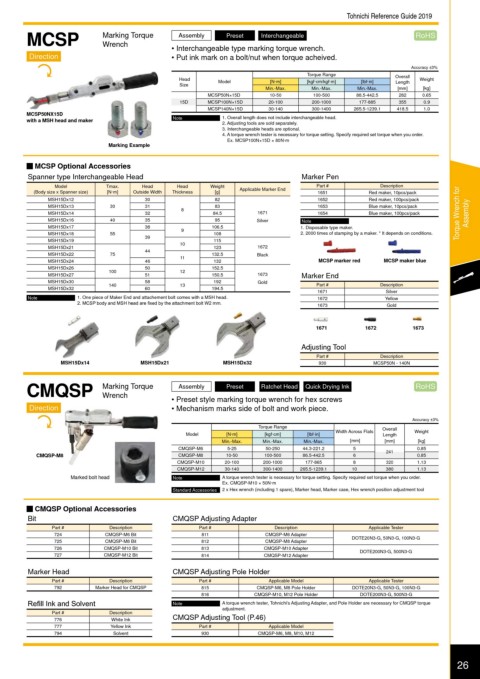

Page 29 - Tohnichi_CIP

Tohnichi Reference Guide 2019
MCSP Marking Torque Assembly Preset Interchangeable RoHS
Wrench
Direction ? Interchangeable type marking torque wrench.
? Put ink mark on a bolt/nut when torque acheived.
Accuracy ±3%
Torque Range Overall
Head Model [N·m] [kgf·cm/kgf·m] [lbf·in] Length Weight
Size
Min.-Max. Min.-Max. Min.-Max. [mm] [kg]
MCSP50N×15D 10-50 100-500 88.5-442.5 282 0.65
15D MCSP100N×15D 20-100 200-1000 177-885 355 0.9
MCSP140N×15D 30-140 300-1400 265.5-1239.1 418.5 1.0
MCSP50NX15D 1. Overall length does not include interchangeable head.
with a MSH head and maker Note
2. Adjusting tools are sold separately.
3. Interchangeable heads are optional.
4. A torque wrench tester is necessary for torque setting. Specify required set torque when you order.
Ex. MCSP100N×15D × 80N·m
Marking Example
MCSP Optional Accessories
Spanner type Interchangeable Head Marker Pen
Model Tmax. Head Head Weight Applicable Marker End Part # Description
(Body size x Spanner size) [N·m] Outside Width Thickness [g] 1651 Red maker, 10pcs/pack
MSH15Dx12 30 82 1652 Red maker, 100pcs/pack
MSH15Dx13 30 31 8 83 1653 Blue maker, 10pcs/pack
MSH15Dx14 32 84.5 1671 1654 Blue maker, 100pcs/pack Torque Wrench for Assembly
MSH15Dx16 40 35 95 Silver Note
MSH15Dx17 38 9 106.5 1. Disposable type maker.
MSH15Dx18 55 39 108 2. 2000 times of stamping by a maker. * It depends on conditions.
MSH15Dx19 10 115
MSH15Dx21 44 123 1672
MSH15Dx22 75 11 132.5 Black
MSH15Dx24 46 132 MCSP marker red MCSP maker blue
MSH15Dx26 100 50 12 152.5
MSH15Dx27 51 150.5 1673 Marker End
MSH15Dx30 140 58 13 192 Gold Part # Description
MSH15Dx32 60 194.5
1671 Silver
Note 1. One piece of Maker End and attachement bolt comes with a MSH head. 1672 Yellow
2. MCSP body and MSH head are ?xed by the attachment bolt W2 mm. 1673 Gold

1671 1672 1673

Adjusting Tool
Part # Description
MSH15Dx14 MSH15Dx21 MSH15Dx32 930 MCSP50N - 140N

CMQSP Marking Torque Assembly Preset Ratchet Head Quick Drying Ink RoHS
Wrench
? Preset style marking torque wrench for hex screws
Direction ? Mechanism marks side of bolt and work piece.

Accuracy ±3%
Torque Range Overall
Model [N·m] [kgf·cm] [lbf·in] Width Across Flats Length Weight

Min.-Max. Min.-Max. Min.-Max. [mm] [mm] [kg]
CMQSP-M6 5-25 50-250 44.3-221.2 5 241 0.85
CMQSP-M8 CMQSP-M8 10-50 100-500 86.5-442.5 6 0.85
CMQSP-M10 20-100 200-1000 177-865 8 320 1.13
CMQSP-M12 30-140 300-1400 265.5-1239.1 10 380 1.13
Marked bolt head Note A torque wrench tester is necessary for torque setting. Specify required set torque when you order.
Ex. CMQSP-M10 × 50N·m
Standard Accessories 2 x Hex wrench (including 1 spare), Marker head, Marker case, Hex wrench position adjustment tool
CMQSP Optional Accessories
Bit CMQSP Adjusting Adapter
Part # Description Part # Description Applicable Tester
724 CMQSP-M6 Bit 811 CMQSP-M6 Adapter DOTE20N3-G, 50N3-G, 100N3-G
725 CMQSP-M8 Bit 812 CMQSP-M8 Adapter
726 CMQSP-M10 Bit 813 CMQSP-M10 Adapter DOTE200N3-G, 500N3-G
727 CMQSP-M12 Bit 814 CMQSP-M12 Adapter
Marker Head CMQSP Adjusting Pole Holder
Part # Description Part # Applicable Model Applicable Tester
792 Marker Head for CMQSP 815 CMQSP-M6, M8 Pole Holder DOTE20N3-G, 50N3-G, 100N3-G
816 CMQSP-M10, M12 Pole Holder DOTE200N3-G, 500N3-G
Re?ll Ink and Solvent Note A torque wrench tester, Tohnichi's Adjusting Adapter, and Pole Holder are necessary for CMQSP torque
Part # Description adjustment.
776 White Ink CMQSP Adjusting Tool (P.46)
777 Yellow Ink Part # Applicable Model
794 Solvent 930 CMQSP-M6, M8, M10, M12
