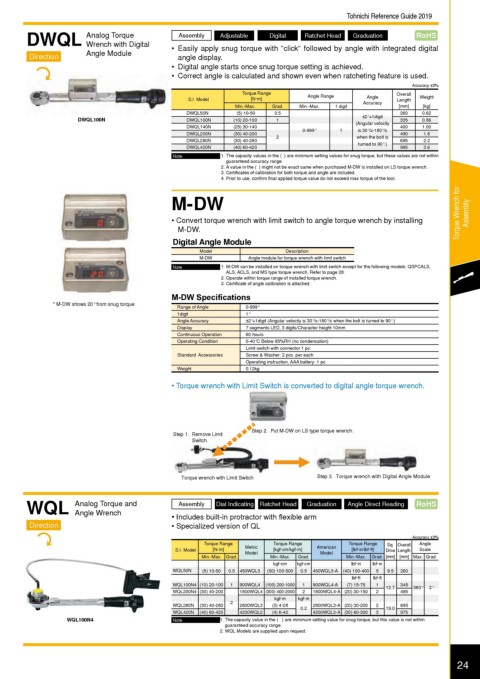

Tohnichi Reference Guide 2019
DWQL Analog Torque Assembly Adjustable Digital Ratchet Head Graduation RoHS
Wrench with Digital
Direction Angle Module ? Easily apply snug torque with "click" followed by angle with integrated digital
angle display.
? Digital angle starts once snug torque setting is achieved.
? Correct angle is calculated and shown even when ratcheting feature is used.
Accuracy ±3%
Torque Range Overall
Angle
S.I. Model [N·m] Angle Range Accuracy Length Weight
Min.-Max. Grad. Min.-Max. 1 digit [mm] [kg]
DWQL50N (5) 10-50 0.5 260 0.62
DWQL100N DWQL100N (10) 20-100 1 ±2°+1digit 335 0.86
DWQL140N (25) 30-140 0-999° 1 (Angular velocity 400 1.00
is 30°/s-180°/s
DWQL200N (30) 40-200 490 1.6
DWQL280N (30) 40-280 2 when the bolt is 695 2.2
turned to 90°.)
DWQL420N (40) 60-420 995 3.6
Note 1. The capacity values in the ( ) are minimum setting values for snug torque, but these values are not within
guaranteed accuracy range.
2. A value in the ( ) might not be exact same when purchased M-DW is installed on LS torque wrench.
3. Certi?cates of calibration for both torque and angle are included.
4. Prior to use, con?rm ?nal applied torque value do not exceed max torque of the tool.
M-DW
? Convert torque wrench with limit switch to angle torque wrench by installing Torque Wrench for Assembly
M-DW.
Digital Angle Module
Model Description
M-DW Angle module for torque wrench with limit switch
Note 1. M-DW can be installed on torque wrench with limit switch except for the following models: QSPCALS,
ALS, ACLS, and MS type torque wrench, Refer to page 28.
2. Operate within torque range of installed torque wrench.
3. Cerli?cate of angle calibration is attached.
M-DW Specifications
* M-DW shows 20° from snug torque.
Range of Angle 0-999°
1digit 1°
Angle Accuracy ±2°+1digit (Angular velocity is 30°/s-180°/s when the bolt is turned to 90°.)
Display 7 segments LED, 3 digits/Character height 10mm
Continuous Operation 60 hours
Operating Condition 0-40°C Below 85%RH (no condensation)
Limit switch with connector 1 pc.
Standard Accessories Screw & Washer: 2 pcs. per each
Operating instruction, AAA battery: 1 pc.
Weight 0.12kg
? Torque wrench with Limit Switch is converted to digital angle torque wrench.

Step 2. Put M-DW on LS type torque wrench.
Step 1. Remove Limit
Switch.

Torque wrench with Limit Switch Step 3. Torque wrench with Digital Angle Module

WQL Analog Torque and Assembly Dial Indicating Ratchet Head Graduation Angle Direct Reading RoHS
Angle Wrench
? Includes built-in protractor with flexible arm
Direction ? Specialized version of QL
Accuracy ±3%
Torque Range Torque Range Torque Range Sq. Overall Angle
S.I. Model [N·m] Metric [kgf·cm/kgf·m] American [lbf·in/lbf·ft] Drive Length Scale
Model
Model
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. [mm] [mm] Max. Grad.
kgf·cm kgf·cm lbf·in lbf·in
WQL50N (5) 10-50 0.5 450WQL3 (50) 100-500 0.5 450WQL3-A (40) 100-400 5 9.5 260
lbf·ft lbf·ft
WQL100N4 (10) 20-100 1 900WQL4 (100) 200-1000 1 900WQL4-A (7) 15-75 1 12.7 345 360° 2°
WQL200N4 (30) 40-200 1800WQL4 (300) 400-2000 2 1800WQL4-A (20) 30-150 2 495
kgf·m kgf·m
2
WQL280N (30) 40-280 2800WQL3 (3) 4-28 0.2 2800WQL3-A (20) 30-200 2 19.0 695
WQL420N (40) 60-420 4200WQL2 (4) 6-42 4200WQL2-A (30) 60-300 3 975
WQL100N4 Note 1. The capacity value in the ( ) are minimum setting value for snug torque, but this value is not within
guaranteed accuracy range.
2. WQL Models are supplied upon request.
24
