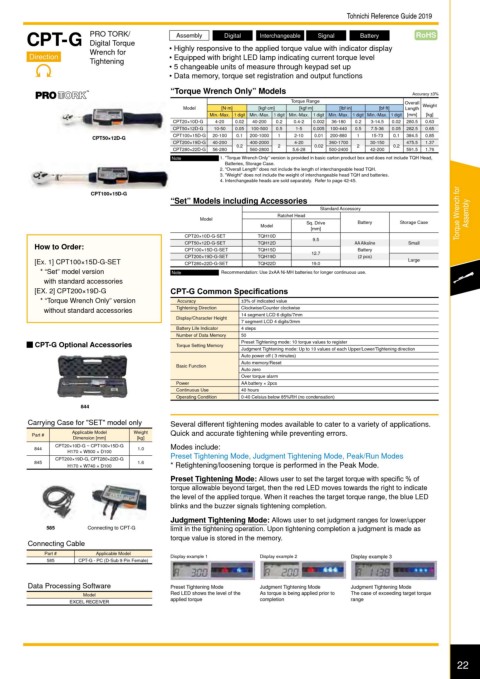

Tohnichi Reference Guide 2019
CPT-G PRO TORK/ Assembly Digital Interchangeable Signal Battery RoHS
Digital Torque
Wrench for ? Highly responsive to the applied torque value with indicator display
Direction ? Equipped with bright LED lamp indicating current torque level
Tightening
? 5 changeable units of measure through keypad set up
? Data memory, torque set registration and output functions
?Torque Wrench Only? Models Accuracy ±3%
Torque Range Overall
Model [N·m] [kgf·cm] [kgf·m] [lbf·in] [bf·ft] Length Weight
Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit Min.-Max. 1 digit [mm] [kg]
CPT20×10D-G 4-20 0.02 40-200 0.2 0.4-2 0.002 36-180 0.2 3-14.5 0.02 280.5 0.63
CPT50×12D-G 10-50 0.05 100-500 0.5 1-5 0.005 100-440 0.5 7.5-36 0.05 282.5 0.65
CPT50×12D-G CPT100×15D-G 20-100 0.1 200-1000 1 2-10 0.01 200-880 1 15-73 0.1 384.5 0.85
CPT200×19D-G 40-200 400-2000 4-20 360-1700 30-150 475.5 1.37
CPT280×22D-G 56-280 0.2 560-2800 2 5.6-28 0.02 500-2400 2 42-200 0.2 591.5 1.76
Note 1. ?Torque Wrench Only? version is provided in basic carton product box and does not include TQH Head,
Batteries, Storage Case.
2. "Overall Length" does not include the length of interchangeable head TQH.
3. "Weight" does not include the weight of interchangeable head TQH and batteries.
4. Interchangeable heads are sold separately. Refer to page 42-45.
CPT100×15D-G
?Set? Models including Accessories
Standard Accessory
Ratchet Head Torque Wrench for Assembly
Model Battery Storage Case
Model Sq. Drive
[mm]
CPT20×10D-G-SET TQH10D 9.5
How to Order: CPT50×12D-G-SET TQH12D AA Alkaline Small
CPT100×15D-G-SET
TQH15D
Battery
CPT200×19D-G-SET TQH19D 12.7 (2 pcs)
[Ex. 1] CPT100×15D-G-SET CPT280×22D-G-SET TQH22D 19.0 Large
* ?Set? model version Note Recommendation: Use 2xAA Ni-MH batteries for longer continuous use.
with standard accessories
[EX. 2] CPT200×19D-G CPT-G Common Specifications
* ?Torque Wrench Only? version Accuracy ±3% of indicated value
without standard accessories Tightening Direction Clockwise/Counter clockwise
Display/Character Height 14 segment LCD 6 digits/7mm
7 segment LCD 4 digits/3mm
Battery Life Indicator 4 steps
Number of Data Memory 50
CPT-G Optional Accessories Torque Setting Memory Preset Tightening mode: 10 torque values to register
Judgment Tightening mode: Up to 10 values of each Upper/Lower/Tightening direction
Auto power off ( 3 minutes)
Auto memory/Reset
Basic Function
Auto zero
Over torque alarm
Power AA battery × 2pcs
Continuous Use 40 hours
Operating Condition 0-40 Celsius below 85%RH (no condensation)
844
Carrying Case for "SET" model only Several different tightening modes available to cater to a variety of applications.
Applicable Model Weight Quick and accurate tightening while preventing errors.
Part #
Dimension [mm] [kg]
CPT20×10D-G ~ CPT100×15D-G Modes include:
844 1.0
H170 × W500 × D100
CPT200×19D-G, CPT280×22D-G Preset Tightening Mode, Judgment Tightening Mode, Peak/Run Modes
845 1.6
H170 × W740 × D100 * Retightening/loosening torque is performed in the Peak Mode.
Preset Tightening Mode: Allows user to set the target torque with speci?c % of
torque allowable beyond target, then the red LED moves towards the right to indicate
the level of the applied torque. When it reaches the target torque range, the blue LED
blinks and the buzzer signals tightening completion.
Judgment Tightening Mode: Allows user to set judgment ranges for lower/upper
585 Connecting to CPT-G limit in the tightening operation. Upon tightening completion a judgment is made as
torque value is stored in the memory.
Connecting Cable
Part # Applicable Model Display example 1 Display example 2 Display example 3
585 CPT-G - PC (D-Sub 9 Pin Female)

Data Processing Software Preset Tightening Mode Judgment Tightening Mode Judgment Tightening Mode
Model Red LED shows the level of the As torque is being applied prior to The case of exceeding target torque
EXCEL RECEIVER applied torque completion range
