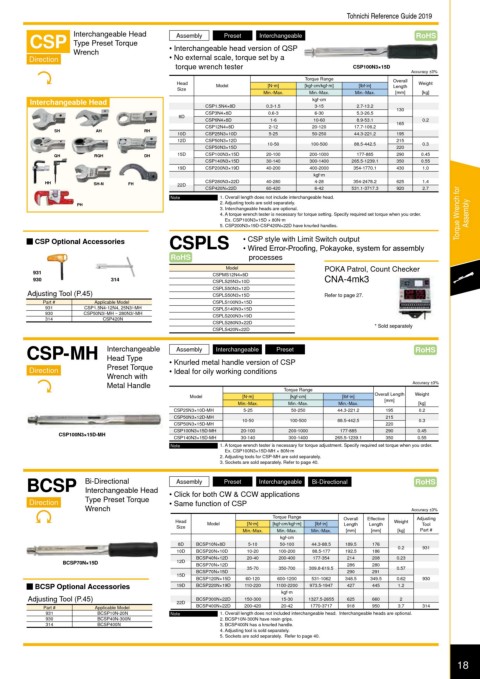

CSP Interchangeable Head Assembly Preset Interchangeable RoHS
Type Preset Torque
Wrench ? Interchangeable head version of QSP
Direction ? No external scale, torque set by a
torque wrench tester CSP100N3×15D
Accuracy ±3%
Torque Range
Head Model [N·m] [kgf·cm/kgf·m] [lbf·in] Overall Weight
Size Length
Min.-Max. Min.-Max. Min.-Max. [mm] [kg]
Interchangeable Head kgf·cm
CSP1.5N4×8D 0.3-1.5 3-15 2.7-13.2
CSP3N4×8D 0.6-3 6-30 5.3-26.5 130
8D
CSP6N4×8D 1-6 10-60 8.9-53.1 0.2
CSP12N4×8D 2-12 20-120 17.7-106.2 165
SH AH RH
10D CSP25N3×10D 5-25 50-250 44.3-221.2 195
12D CSP50N3×12D 10-50 100-500 88.5-442.5 215 0.3
CSP50N3×15D 220
QH RQH DH 15D CSP100N3×15D 20-100 200-1000 177-885 290 0.45
CSP140N3×15D 30-140 300-1400 265.5-1239.1 350 0.55
19D CSP200N3×19D 40-200 400-2000 354-1770.1 430 1.0
kgf·m
HH SH-N FH 22D CSP280N3×22D 40-280 4-28 354-2478.2 625 1.4
CSP420N×22D 60-420 6-42 531.1-3717.3 920 2.7
Note 1. Overall length does not include interchangeable head.
PH 2. Adjusting tools are sold separately.
3. Interchangeable heads are optional.
4. A torque wrench tester is necessary for torque setting. Specify required set torque when you order. Torque Wrench for Assembly
Ex. CSP100N3×15D × 80N·m
5. CSP200N3×19D-CSP420N×22D have knurled handles.
CSPLS ? Wired Error-Proo?ng, Pokayoke, system for assembly
CSP Optional Accessories ? CSP style with Limit Switch output
RoHS processes
Model POKA Patrol, Count Checker
931 CSPMS12N4×8D
930 314 CSPLS25N3×10D CNA-4mk3
CSPLS50N3×12D
Adjusting Tool (P.45) CSPLS50N3×15D Refer to page 27.
Part # Applicable Model CSPLS100N3×15D
931 CSP1.5N4-12N4, 25N3/-MH CSPLS140N3×15D
930 CSP50N3/-MH ~ 280N3/-MH CSPLS200N3×19D
314 CSP420N
CSPLS280N3×22D * Sold separately
CSPLS420N×22D
CSP-MH Interchangeable Assembly Interchangeable Preset RoHS
Head Type
Direction Preset Torque ? Knurled metal handle version of CSP
? Ideal for oily working conditions
Wrench with
Metal Handle Accuracy ±3%
Torque Range
Model [N·m] [kgf·cm] [lbf·in] Overall Length Weight
[mm]
Min.-Max. Min.-Max. Min.-Max. [kg]
CSP25N3×10D-MH 5-25 50-250 44.3-221.2 195 0.2
CSP50N3×12D-MH 10-50 100-500 88.5-442.5 215 0.3
CSP50N3×15D-MH 220
CSP100N3×15D-MH 20-100 200-1000 177-885 290 0.45
CSP100N3×15D-MH
CSP140N3×15D-MH 30-140 300-1400 265.5-1239.1 350 0.55
Note 1. A torque wrench tester is necessary for torque adjustment. Specify required set torque when you order.
Ex. CSP100N3×15D-MH × 80N·m
2. Adjusting tools for CSP-MH are sold separately.
3. Sockets are sold separately. Refer to page 40.
BCSP Bi-Directional Assembly Preset Interchangeable Bi-Directional RoHS
Interchangeable Head
Direction Type Preset Torque ? Click for both CW & CCW applications
? Same function of CSP
Wrench Accuracy ±3%
Torque Range Overall Effective Adjusting
Head Model [N·m] [kgf·cm/kgf·m] [lbf·in] Length Length Weight Tool
Size
Min.-Max. Min.-Max. Min.-Max. [mm] [mm] [kg] Part #
kgf·cm
8D BCSP10N×8D 5-10 50-100 44.3-88.5 189.5 176 0.2 931
10D BCSP20N×10D 10-20 100-200 88.5-177 192.5 186
BCSP40N×12D 20-40 200-400 177-354 214 208 0.23
BCSP70N×15D 12D BCSP70N×12D 286 280
BCSP70N×15D 35-70 350-700 309.8-619.5 290 291 0.57
15D
BCSP120N×15D 60-120 600-1200 531-1062 348.5 349.5 0.62 930
BCSP Optional Accessories 19D BCSP220N×19D 110-220 1100-2200 973.5-1947 427 445 1.2
kgf·m
Adjusting Tool (P.45) BCSP300N×22D 150-300 15-30 1327.5-2655 625 660 2
22D
Part # Applicable Model BCSP400N×22D 200-420 20-42 1770-3717 918 950 3.7 314
931 BCSP10N-20N Note 1. Overall length does not included interchangeable head. Interchangeable heads are optional.
930 BCSP40N-300N 2. BCSP10N-300N have resin grips.
314 BCSP400N 3. BCSP400N has a knurled handle.
4. Adjusting tool is sold separately.
5. Sockets are sold separately. Refer to page 40.
