Tohnichi Reference Guide 2019

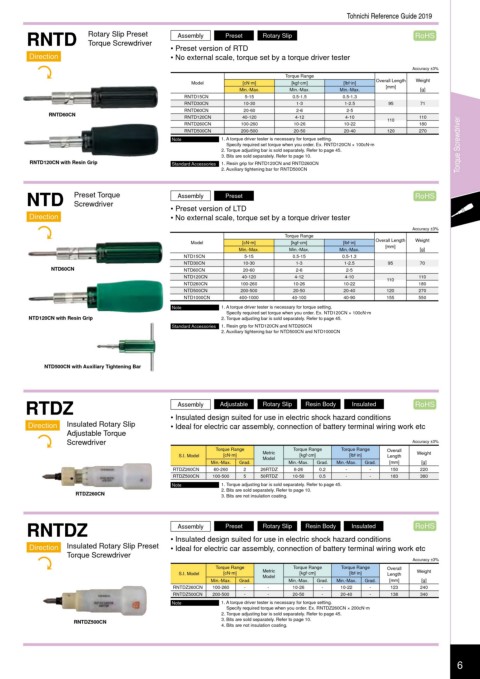

RNTD Rotary Slip Preset Assembly Preset Rotary Slip RoHS
Torque Screwdriver
? Preset version of RTD
Direction ? No external scale, torque set by a torque driver tester
Accuracy ±3%
Torque Range
Model [cN·m] [kgf·cm] [lbf·in] Overall Length Weight
Min.-Max. Min.-Max. Min.-Max. [mm] [g]
RNTD15CN 5-15 0.5-1.5 0.5-1.3
RNTD30CN 10-30 1-3 1-2.5 95 71
RNTD60CN 20-60 2-6 2-5
RNTD60CN RNTD120CN 40-120 4-12 4-10 110
RNTD260CN 100-260 10-26 10-22 110 180
RNTD500CN 200-500 20-50 20-40 120 270
Note 1. A torque driver tester is necessary for torque setting.
Specify required set torque when you order. Ex. RNTD120CN × 100cN·m Torque Screwdriver
2. Torque adjusting bar is sold separately. Refer to page 45.
3. Bits are sold separately. Refer to page 10.
RNTD120CN with Resin Grip Standard Accessories 1. Resin grip for RNTD120CN and RNTD260CN
2. Auxiliary tightening bar for RNTD500CN

NTD Preset Torque Assembly Preset RoHS
Screwdriver
Direction ? Preset version of LTD
? No external scale, torque set by a torque driver tester
Accuracy ±3%
Torque Range
Model [cN·m] [kgf·cm] [lbf·in] Overall Length Weight
[mm]
Min.-Max. Min.-Max. Min.-Max. [g]
NTD15CN 5-15 0.5-15 0.5-1.3
NTD30CN 10-30 1-3 1-2.5 95 70
NTD60CN NTD60CN 20-60 2-6 2-5
NTD120CN 40-120 4-12 4-10 110 110
NTD260CN 100-260 10-26 10-22 180
NTD500CN 200-500 20-50 20-40 120 270
NTD1000CN 400-1000 40-100 40-90 155 550
Note 1. A torque driver tester is necessary for torque setting.
Specify required set torque when you order. Ex. NTD120CN × 100cN·m
NTD120CN with Resin Grip 2. Torque adjusting bar is sold separately. Refer to page 45.
Standard Accessories 1. Resin grip for NTD120CN and NTD260CN
2. Auxiliary tightening bar for NTD500CN and NTD1000CN

NTD500CN with Auxiliary Tightening Bar

RTDZ Assembly Adjustable Rotary Slip Resin Body Insulated RoHS

Direction Insulated Rotary Slip ? Insulated design suited for use in electric shock hazard conditions
? Ideal for electric car assembly, connection of battery terminal wiring work etc
Adjustable Torque
Screwdriver Accuracy ±3%
Torque Range Torque Range Torque Range Overall
S.I. Model [cN·m] Metric [kgf·cm] [lbf·in] Length Weight
Model
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. [mm] [g]
RTDZ260CN 60-260 2 26RTDZ 6-26 0.2 - - 150 220
RTDZ500CN 100-500 5 50RTDZ 10-50 0.5 - - 183 380
Note 1. Torque adjusting bar is sold separately. Refer to page 45.
RTDZ260CN 2. Bits are sold separately. Refer to page 10.
3. Bits are not insulation coating.

RNTDZ Assembly Preset Rotary Slip Resin Body Insulated RoHS

Direction Insulated Rotary Slip Preset ? Insulated design suited for use in electric shock hazard conditions
? Ideal for electric car assembly, connection of battery terminal wiring work etc
Torque Screwdriver
Accuracy ±3%
Torque Range Torque Range Torque Range Overall
S.I. Model [cN·m] Metric [kgf·cm] [lbf·in] Length Weight
Model
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. [mm] [g]
RNTDZ260CN 100-260 - - 10-26 - 10-22 - 123 240
RNTDZ500CN 200-500 - - 20-50 - 20-40 - 138 340
Note 1. A torque driver tester is necessary for torque setting.
Specify required torque when you order. Ex. RNTDZ260CN × 200cN·m
2. Torque adjusting bar is sold separately. Refer to page 45.
RNTDZ500CN 3. Bits are sold separately. Refer to page 10.
4. Bits are not insulation coating.

6
