Tohnichi Reference Guide 2019

Selection of Torque Products From Torque Control to Tightening Assurance System

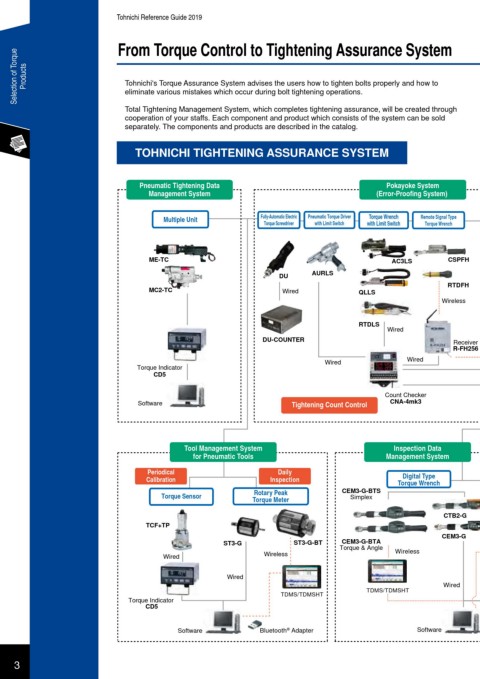

Tohnichi's Torque Assurance System advises the users how to tighten bolts properly and how to
eliminate various mistakes which occur during bolt tightening operations.

Total Tightening Management System, which completes tightening assurance, will be created through
cooperation of your staffs. Each component and product which consists of the system can be sold
separately. The components and products are described in the catalog.

TOHNICHI TIGHTENING ASSURANCE SYSTEM
