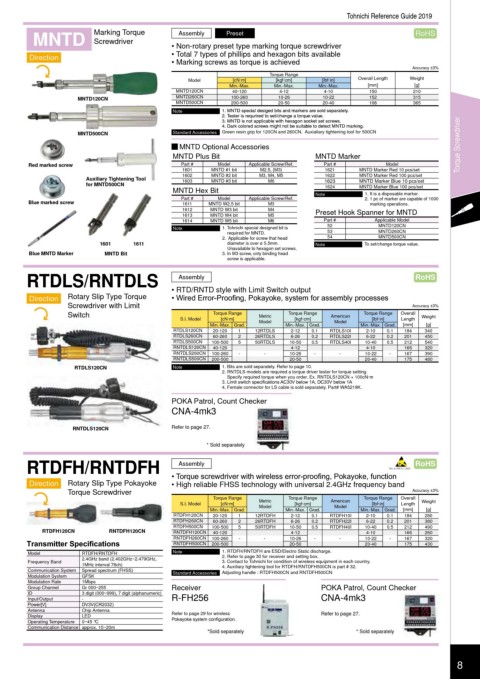

MNTD Marking Torque ? Non-rotary preset type marking torque screwdriver RoHS
Preset
Assembly
Screwdriver
Direction ? Total 7 types of phillips and hexagon bits available
? Marking screws as torque is achieved
Accuracy ±3%
Torque Range
Model [cN·m] [kgf·cm] [lbf·in] Overall Length Weight
Min.-Max. Min.-Max. Min.-Max. [mm] [g]
MNTD120CN 40-120 4-12 4-10 150 210
MNTD120CN MNTD260CN 100-260 10-26 10-22 152 315
MNTD500CN 200-500 20-50 20-40 168 365
1. MNTD special desiged bits and markers are sold separately.
Note 1. MNTD special desiged bits and markers are sold separately.
Note
2. Tester is requrired to set/change a torque value.
2. Tester is requrired to set/change a torque value.
3. MNTD is not applicable with hexagon socket set screws.
3. MNTD is not applicable with hexagon socket set screws.
4. Dark colored screws might not be suitable to detect MNTD marking.
4. Dark colored screws might not be suitable to detect MNTD marking.
MNTD500CN Standard Accessories Green resin grip for 120CN and 260CN. Auxialiary tightening tool for 500CN
MNTD Optional Accessories Torque Screwdriver
MNTD Plus Bit MNTD Marker
Red marked screw Part # Model Applicable Screw/Ref. Part # Model
1601 MNTD #1 bit M2.5, (M3) 1621 MNTD Marker Red 10 pcs/set
1602 MNTD #2 bit M3, M4, M5 1622 MNTD Marker Red 100 pcs/set
Auxiliary Tightening Tool 1603 MNTD #3 bit M6 1623 MNTD Marker Blue 10 pcs/set
for MNTD500CN 1624 MNTD Marker Blue 100 pcs/set
MNTD Hex Bit 1. It is a disposable marker.
Part # Model Applicable Screw/Ref. Note 2. 1 pc of marker are capable of 1000
Blue marked screw 1611 MNTD W2.5 bit M3 marking operations.
1612 MNTD W3 bit M4 Preset Hook Spanner for MNTD
1613 MNTD W4 bit M5
1614 MNTD W5 bit M6 Part # Applicable Model
Note 1. Tohnichi special designed bit is 52 MNTD120CN
required for MNTD. 53 MNTD260CN
2. Applicable for screw that head 54 MNTD500CN
1601 1611 diameter is over ø 5.5mm. Note To set/change torque value.
Unavailable to hexagon set screws.
Blue MNTD Marker MNTD Bit 3. In M3 screw, only binding head
screw is applicable.
RTDLS/RNTDLS Assembly RoHS
? RTD/RNTD style with Limit Switch output
Direction Rotary Slip Type Torque ? Wired Error-Proo?ng, Pokayoke, system for assembly processes
Screwdriver with Limit Accuracy ±3%
Switch Torque Range Metric Torque Range American Torque Range Overall Weight
S.I. Model [cN·m] Model [kgf·cm] Model [lbf·in] Length
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. [mm] [g]
RTDLS120CN 20-120 1 12RTDLS 2-12 0.1 RTDLS10I 2-10 0.1 184 340
RTDLS260CN 60-260 2 26RTDLS 6-26 0.2 RTDLS22I 6-22 0.2 201 450
RTDLS500CN 100-500 5 50RTDLS 10-50 0.5 RTDLS40I 10-40 0.5 212 540
RNTDLS120CN 40-120 4-12 4-10 166 320
RNTDLS260CN 100-260 - - 10-26 - - 10-22 - 167 390
RNTDLS500CN 200-500 20-50 20-40 175 480
RTDLS120CN Note 1. Bits are sold separately. Refer to page 10.
2. RNTDLS models are required a torque driver tester for torque setting.
Specify required torque when you order. Ex. RNTDLS120CN × 100cN·m
3. Limit switch speci?cations AC30V below 1A, DC30V below 1A
4. Female connector for LS cable is sold separately. Part# WA5219K.
POKA Patrol, Count Checker
CNA-4mk3
RNTDLS120CN Refer to page 27.
* Sold separately

RTDFH/RNTDFH Assembly RoHS

Direction Rotary Slip Type Pokayoke ? Torque screwdriver with wireless error-proo?ng, Pokayoke, function
? High reliable FHSS technology with universal 2.4GHz frequency band
Torque Screwdriver Accuracy ±3%
Torque Range Metric Torque Range American Torque Range Overall
S.I. Model [cN·m] Model [kgf·cm] Model [lbf·in] Length Weight
Min.-Max. Grad. Min.-Max. Grad. Min.-Max. Grad. [mm] [g]
RTDFH120CN 20-120 1 12RTDFH 2-12 0.1 RTDFH10I 2-10 0.1 184 280
RTDFH260CN 60-260 2 26RTDFH 6-26 0.2 RTDFH22I 6-22 0.2 201 380
RTDFH500CN 100-500 5 50RTDFH 10-50 0.5 RTDFH40I 10-40 0.5 212 490
RTDFH120CN RNTDFH120CN RNTDFH120CN 40-120 4-12 4-10 166 260
RNTDFH260CN 100-260 - - 10-26 - - 10-22 - 167 320
Transmitter Specifications RNTDFH500CN 200-500 20-50 20-40 175 430
Model RTDFH/RNTDFH Note 1. RTDFH/RNTDFH are ESD/Electro Static discharge.
2.4GHz band (2.402GHz~2.479GHz, 2. Refer to page 30 for receiver and setting box.
Frequency Band 3. Contact to Tohnichi for condition of wireless equipment in each country.
1MHz interval 78ch) 4. Auxiliary tightening tool for RTDFH/RNTDFH500CN is part # 32.
Communication System Spread spectrum (FHSS) Standard Accessories Adjusting handle : RTDFH500CN and RNTDFH500CN
Modulation System GFSK
Modulation Rate 1Mbps
Group Channel Gr 000~255 Receiver POKA Patrol, Count Checker
ID 3 digit (000~999), 7 digit (alphanumeric)
Input/Output - R-FH256 CNA-4mk3
Power[V] DV3V(CR2032)
Antenna Chip Antenna
Display LED Refer to page 29 for wireless Refer to page 27.
Operating Temperature 0~45 °C Pokayoke system con?guration.
Communication Distance approx. 10~20m
*Sold separately * Sold separately
