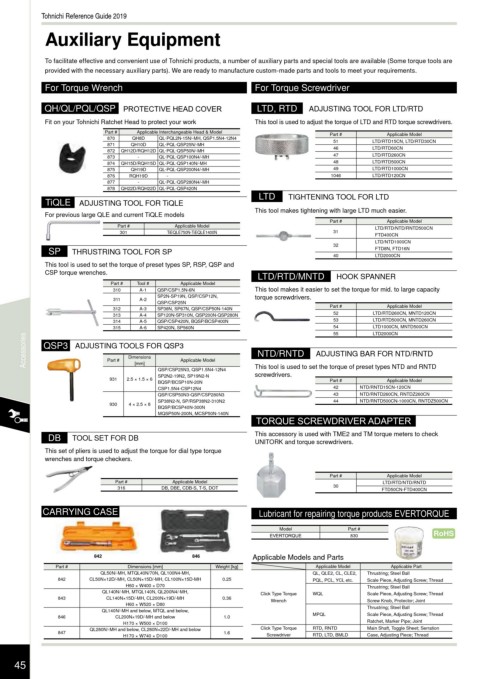

Tohnichi Reference Guide 2019
Auxiliary Equipment
To facilitate effective and convenient use of Tohnichi products, a number of auxiliary parts and special tools are available (Some torque tools are
provided with the necessary auxiliary parts). We are ready to manufacture custom-made parts and tools to meet your requirements.
For Torque Wrench For Torque Screwdriver
QH/QL/PQL/QSP PROTECTIVE HEAD COVER LTD, RTD ADJUSTING TOOL FOR LTD/RTD
Fit on your Tohnichi Ratchet Head to protect your work This tool is used to adjust the torque of LTD and RTD torque screwdrivers.
Part # Applicable Interchangeable Head & Model Part # Applicable Model
870 QH8D QL·PQL2N-15N/-MH, QSP1.5N4-12N4 51 LTD/RTD15CN, LTD/RTD30CN
871 QH10D QL·PQL·QSP25N/-MH 46 LTD/RTD60CN
872 QH12D/RQH12D QL·PQL·QSP50N/-MH
873 - QL·PQL·QSP100N4/-MH 47 LTD/RTD260CN
874 QH15D/RQH15D QL·PQL·QSP140N/-MH 48 LTD/RTD500CN
875 QH19D QL·PQL·QSP200N4/-MH 49 LTD/RTD1000CN
876 RQH19D - 1046 LTD/RTD120CN
877 - QL·PQL·QSP280N4/-MH
878 QH22D/RQH22D QL·PQL·QSP420N
LTD TIGHTENING TOOL FOR LTD
TiQLE ADJUSTING TOOL FOR TiQLE
This tool makes tightening with large LTD much easier.
For previous large QLE and current TiQLE models
Part # Applicable Model
Part # Applicable Model LTD/RTD/NTD/RNTD500CN
301 TiEQLE750N-TiEQLE1400N 31 FTD400CN
LTD/NTD1000CN
32
SP THRUSTRING TOOL FOR SP FTD8N, FTD16N
40 LTD2000CN
This tool is used to set the torque of preset types SP, RSP, QSP and
CSP torque wrenches. LTD/RTD/MNTD HOOK SPANNER
Part # Tool # Applicable Model
310 A-1 QSP/CSP1.5N-6N This tool makes it easier to set the torque for mid. to large capacity
SP2N-SP19N, QSP/CSP12N, torque screwdrivers.
311 A-2
QSP/CSP25N
312 A-3 SP38N, SP67N, QSP/CSP50N-140N Part # Applicable Model
313 A-4 SP120N-SP310N, QSP200N-QSP280N 52 LTD/RTD260CN, MNTD120CN
314 A-5 QSP/CSP420N, BQSP/BCSP400N 53 LTD/RTD500CN, MNTD260CN
315 A-6 SP420N, SP560N 54 LTD1000CN, MNTD500CN
LTD2000CN
55
Accessories QSP3 ADJUSTING TOOLS FOR QSP3 NTD/RNTD ADJUSTING BAR FOR NTD/RNTD
Dimensions
Applicable Model
Part #
[mm]
QSP/CSP25N3, QSP1.5N4-12N4 This tool is used to set the torque of preset types NTD and RNTD
SP2N2-19N2, SP19N2-N screwdrivers.
931 2.5 × 1.5 × 6 Part # Applicable Model
BQSP/BCSP10N-20N
CSP1.5N4-CSP12N4 42 NTD/RNTD15CN-120CN
QSP/CSP50N3-QSP/CSP280N3 43 NTD/RNTD260CN, RNTDZ260CN
SP38N2-N, SP/RSP38N2-310N2 44 NTD/RNTD500CN-1000CN, RNTDZ500CN
930 4 × 2.5 × 8
BQSP/BCSP40N-300N
MQSP50N-200N, MCSP50N-140N
TORQUE SCREWDRIVER ADAPTER
DB TOOL SET FOR DB This accessory is used with TME2 and TM torque meters to check
UNITORK and torque screwdrivers.
This set of pliers is used to adjust the torque for dial type torque
wrenches and torque checkers.
Part # Applicable Model
Part # Applicable Model LTD/RTD/NTD/RNTD
316 DB, DBE, CDB-S, T-S, DOT 30 FTD50CN-FTD400CN
CARRYING CASE Lubricant for repairing torque products EVERTORQUE
Model Part #
EVERTORQUE 830 RoHS
842 846 Applicable Models and Parts
Part # Dimensions [mm] Weight [kg] Applicable Model Applicable Part
QL50N/-MH, MTQL40N/70N, QL100N4-MH, QL, QLE2, CL, CLE2, Thrustring; Steel Ball
842 CL50N×12D/-MH, CL50N×15D/-MH, CL100N×15D-MH 0.25 PQL, PCL, YCL etc. Scale Piece, Adjusting Screw; Thread
H60 × W400 × D70 Thrustring; Steel Ball
QL140N/-MH, MTQL140N, QL200N4/-MH, Click Type Torque WQL Scale Piece, Adjusting Screw; Thread
843 CL140N×15D/-MH, CL200N×19D/-MH 0.36 Wrench Screw Knob, Protector; Joint
H60 × W520 × D80
QL140N/-MH and below, MTQL and below, Thrustring; Steel Ball
846 CL200N×19D/-MH and below 1.0 MPQL Scale Piece, Adjusting Screw; Thread
H170 × W500 × D100 Ratchet, Marker Pipe; Joint
QL280N/-MH and below, CL280N×22D/-MH and below Click Type Torque RTD, RNTD Main Shaft, Toggle Sheet; Serration
847 1.6
H170 × W740 × D100 Screwdriver RTD, LTD, BMLD Case, Adjusting Piece; Thread
45
