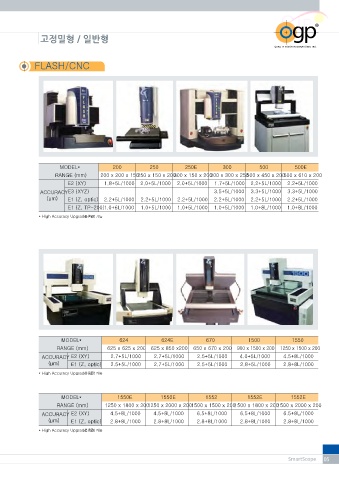

FLASH/CNC

MODEL* 200 250 250E 300 500 500E
RANGE (mm) 200 x 200 x 150250 x 150 x 200300 x 150 x 200300 x 300 x 250500 x 450 x 200500 x 610 x 200
E2 (XY) 1.8+5L/1000 2.0+5L/1000 2.0+5L/1000 1.7+5L/1000 2.2+5L/1000 2.2+5L/1000
ACCURACY E3 (XYZ) 3.5+5L/1000 3.3+5L/1000 3.3+5L/1000
(µm) E1 (Z, optic) 2.2+5L/1000 2.2+5L/1000 2.2+5L/1000 2.2+5L/1000 2.2+5L/1000 2.2+5L/1000
E1 (Z, TP-200)1.0+6L/1000 1.0+5L/1000 1.0+5L/1000 1.0+5L/1000 1.0+8L/1000 1.0+8L/1000
* High Accuracy Upgrade / Z
? ?? ??

MODEL* 624 624E 670 1500 1550
RANGE (mm) 625 x 625 x 200 625 x 850 x200 650 x 670 x 200 900 x 1500 x 200 1250 x 1500 x 200
ACCURACY E2 (XY) 2.7+5L/1000 2.7+5L/1000 2.5+5L/1000 4.0+5L/1000 4.5+8L/1000
(µm) E1 (Z, optic) 2.5+5L/1000 2.7+5L/1000 2.5+5L/1000 2.8+5L/1000 2.8+8L/1000
* High Accuracy Upgrade / Z
? ?? ??

MODEL* 1550E 1550E 1552 1552E 1552E
RANGE (mm) 1250 x 1800 x 2001250 x 2000 x 2001500 x 1500 x 2001500 x 1800 x 2001500 x 2000 x 200
ACCURACY E2 (XY) 4.5+8L/1000 4.5+8L/1000 6.5+8L/1000 6.5+8L/1000 6.5+8L/1000
(µm) E1 (Z, optic) 2.8+8L/1000 2.8+8L/1000 2.8+8L/1000 2.8+8L/1000 2.8+8L/1000
* High Accuracy Upgrade / Z
? ?? ??
