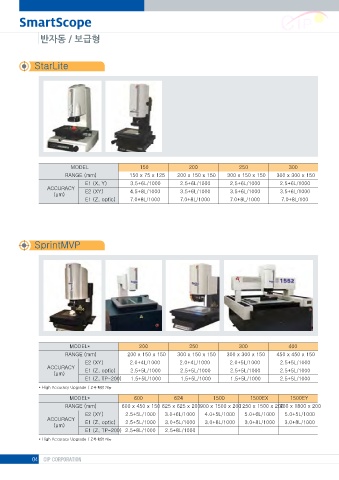

StarLite

MODEL 150 200 250 300
RANGE (mm) 150 x 75 x 125 200 x 150 x 150 300 x 150 x 150 300 x 300 x 150
E1 (X, Y) 3.5+6L/1000 2.5+6L/1000 2.5+6L/1000 2.5+6L/1000
ACCURACY E2 (XY) 4.5+8L/1000 3.5+6L/1000 3.5+6L/1000 3.5+6L/1000
(µm)
E1 (Z, optic) 7.0+8L/1000 7.0+8L/1000 7.0+8L/1000 7.0+8L/100

SprintMVP

MODEL* 200 250 300 400
RANGE (mm) 200 x 150 x 150 300 x 150 x 150 300 x 300 x 150 450 x 450 x 150
E2 (XY) 2.0+4L/1000 2.0+4L/1000 2.0+5L/1000 2.5+5L/1000
ACCURACY E1 (Z, optic) 2.5+5L/1000 2.5+5L/1000 2.5+5L/1000 2.5+5L/1000
(µm)
E1 (Z, TP-200) 1.5+5L/1000 1.5+5L/1000 1.5+5L/1000 2.5+5L/1000

* High Accuracy Upgrade / Z? ?? ??
MODEL* 600 624 1500 1500EX 1500EY
RANGE (mm) 600 x 450 x 150 625 x 625 x 200900 x 1500 x 2001250 x 1500 x 200900 x 1800 x 200
E2 (XY) 2.5+5L/1000 3.0+6L/1000 4.0+5L/1000 5.0+6L/1000 5.0+5L/1000
ACCURACY
(µm) E1 (Z, optic) 2.5+5L/1000 3.0+5L/1000 3.0+8L/1000 3.0+8L/1000 3.0+8L/1000
E1 (Z, TP-200) 2.5+8L/1000 2.5+8L/1000
* High Accuracy Upgrade / Z? ?? ??
